Products specifications

Categories Circuit Protection
Features 25.2V Clamp 59.5A Ipp Tvs Diode Through Hole DO-13 (DO-202AA)
Manufacturer Microchip Technology
Series Military, MIL-PRF-19500/500
Package Bulk
Operating Temperature Range -65°C ~ 175°C (TJ)
Mounting Through Hole
Package DO-13
Case / Package DO-13 (DO-202AA)
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.10.0080
Other Part Number 1086-15787, 1086-15787-MIL
Quantity per package 1
Popularity High
Supply and Demand Status Balance
Win Source Part Number 922266-JAN1N5639A
Ultra Librarian 3D Model Ultra Librarian JAN1N5639A CAD Model

Description

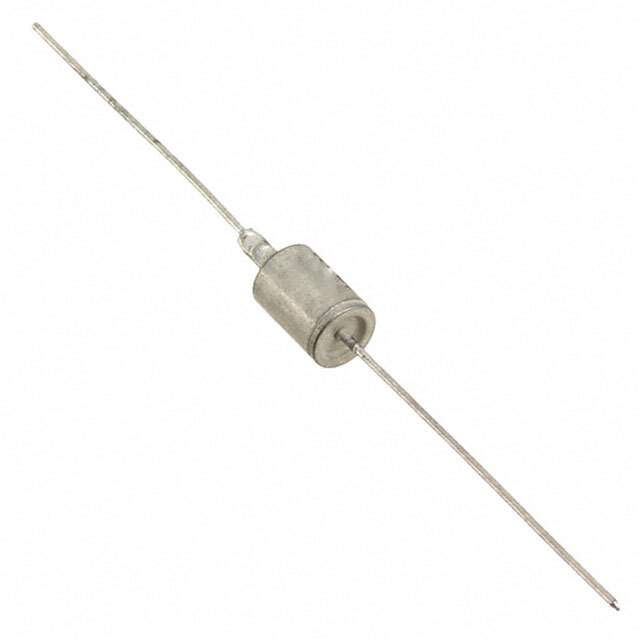

Microchip Technology JAN1N5639A Zener Diode

The JAN1N5639A is a high-quality Zener diode from Microchip Technology, a leader in the semiconductor industry. This Zener diode is designed to provide precise voltage regulation and is specifically engineered to meet the rigorous standards of the Joint Army/Navy (JAN) specification, ensuring reliability and performance in critical applications.

Key Features

  • Voltage Regulation: The JAN1N5639A offers a Zener voltage of 47V, making it suitable for a range of voltage regulation tasks in electronic circuits.
  • Power Dissipation: With a power dissipation rating of 1.5W, this diode can handle significant power levels, ensuring stable operation under various conditions.
  • Tolerance: The Zener voltage tolerance is specified for precise regulation, which is critical for sensitive electronic components that require stable voltage levels.
  • Temperature Stability: The device is characterized for operation from -65°C to +175°C, providing reliable performance across a wide temperature range.
  • Package: The JAN1N5639A comes in a DO-13 metal case, which provides robust physical protection and efficient heat dissipation for the diode.
  • Quality and Reliability: As a JAN-class component, it adheres to stringent quality control standards and is suitable for military and aerospace applications where dependability is paramount.

Applications

The JAN1N5639A Zener diode is ideal for a variety of applications that require precise voltage regulation and high reliability. It is commonly used in:

  • Power supply circuits
  • Voltage reference circuits
  • Protection circuits against overvoltage conditions
  • Military and aerospace electronics
  • High-reliability commercial systems

With its combination of precise voltage control, high power dissipation, and robust construction, the JAN1N5639A from Microchip Technology is an excellent choice for designers who need a dependable Zener diode for their critical applications.
