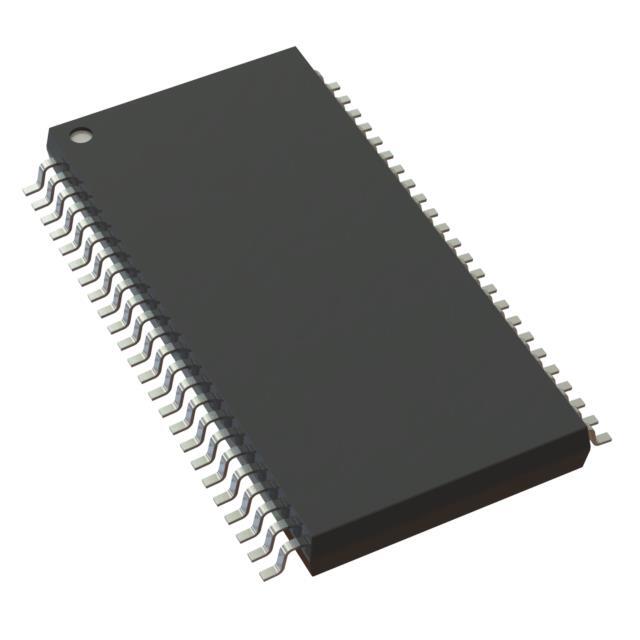

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Logic Type Shift Register
Output Type Open Drain
Number of Elements 1
Number of Bits per Element 32
Function Serial to Parallel
Voltage - Supply 10.8V ~ 13.2V
Temperature Range - Operating -40°C ~ 85°C
Mounting Type Surface Mount
Case / Package 44-QFP
Supplier Device Package 44-PQFP (10x10)
Package Tray
Supply and Demand Status Shortage
Win Source Part Number 1501075-HV5122PG-G
Ultra Librarian 3D Model Ultra Librarian HV5122PG-G CAD Model
