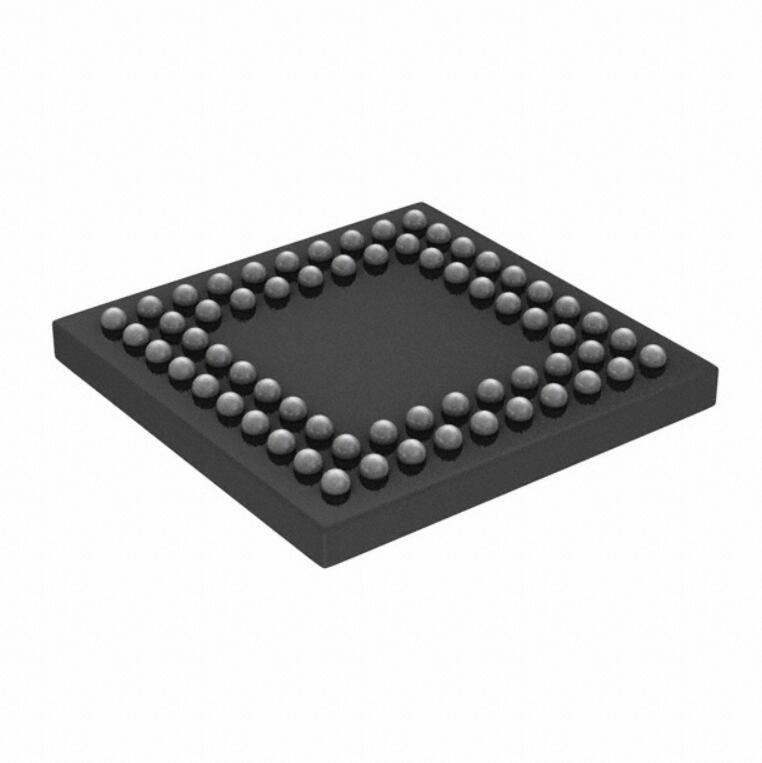

The HV2762LB-G is a sophisticated, high-voltage analog switch integrated circuit (IC) from the renowned manufacturer Microchip Technology. Designed for precision and reliability, this IC is a perfect solution for applications that require routing of high-voltage signals in a compact form factor. With its robust build and advanced features, the HV2762LB-G is ideal for use in medical ultrasound imaging, non-destructive testing (NDT) equipment, and other specialized industrial applications.

Key Features

• High-Voltage Operation: The HV2762LB-G is capable of handling high-voltage signals, which makes it highly suitable for applications that involve signal routing in high-voltage environments.
• Low Charge Injection: This IC ensures minimal disturbance to the signal path, providing high-fidelity signal routing thanks to its low charge injection feature.
• Low On-Resistance: The device offers low on-resistance, which translates to better signal integrity and lower power loss during operation.
• Extended Temperature Range: It is designed to operate over an extended temperature range, making it versatile for various industrial applications.
• Daisy Chain Capability: Multiple HV2762LB-G ICs can be daisy-chained together to create larger switching networks without significant complexity in design.

Applications

The HV2762LB-G's high-voltage capabilities and robust performance make it an excellent choice for a wide range of applications. It is particularly well-suited for:

• Medical Ultrasound Systems: For high-precision imaging requiring reliable, high-voltage signal routing.
• Non-Destructive Testing: Where accurate signal routing is critical for detecting flaws or irregularities in materials.
• Industrial Process Controls: Where high-voltage switching is a part of the control systems.

Quality and Reliability

Microchip Technology is known for its commitment to quality, and the HV2762LB-G is no exception. This product is manufactured to meet high standards of performance and reliability, ensuring that it can withstand the rigors of demanding industrial applications.
