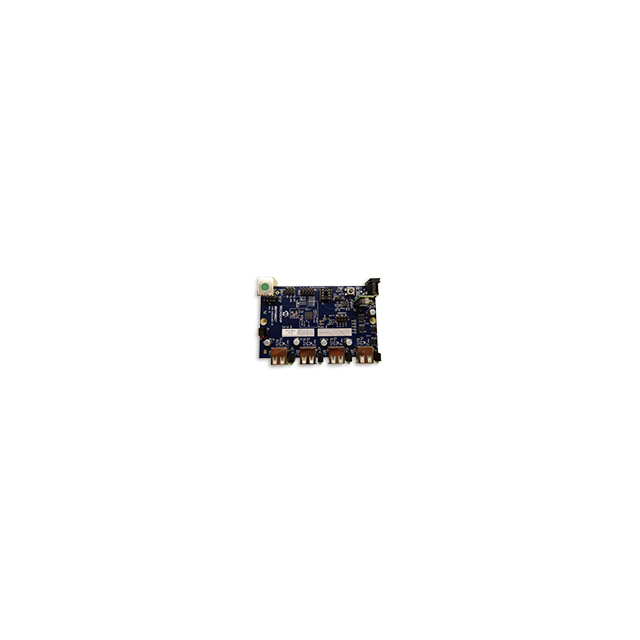

The EVB-USB2534BC is a high-performance evaluation board from Microchip Technology, designed for developers and engineers who need to assess the functionality and integration capabilities of the USB2534BC USB 2.0 hub controller. This versatile evaluation platform is tailored to facilitate the development of USB applications and to expedite the design-in process for various electronic products.

At the core of the EVB-USB2534BC is the USB2534BC chip, a feature-rich USB 2.0 hub controller that supports up to four downstream ports with integrated battery charging capabilities. This controller is compliant with the USB 2.0 specification and offers backward compatibility with USB 1.1. It is optimized for applications that require efficient power management and reliable data throughput, making it suitable for a broad range of USB peripheral development.

The evaluation board includes a range of features that highlight the capabilities of the USB2534BC controller, such as:

• MultiTRAK™ technology, providing high-bandwidth performance across multiple USB ports.
• PortMap and PortSwap configuration settings, allowing for customizable port configurations and pin assignments.
• PhyBoost™ technology, which enhances signal integrity for extended cable lengths and challenging electrical environments.
• Integrated battery charging support, enabling the charging of battery-powered devices through the USB ports.
• VariSense™ technology, enabling the detection of various USB data rates for seamless operation with different USB devices.

The EVB-USB2534BC is equipped with LED indicators for power and port status, providing visual feedback for debugging and diagnostics. It also includes jumpers and headers for easy access to the controller's configuration settings and for monitoring the USB data lines. The board is designed with robust ESD protection, ensuring durability and stability during development and testing.

Whether you are developing desktop PCs, docking stations, monitors, or embedded systems, the EVB-USB2534BC evaluation board from Microchip Technology provides a solid foundation for exploring and integrating USB hub functionality into your next project.
