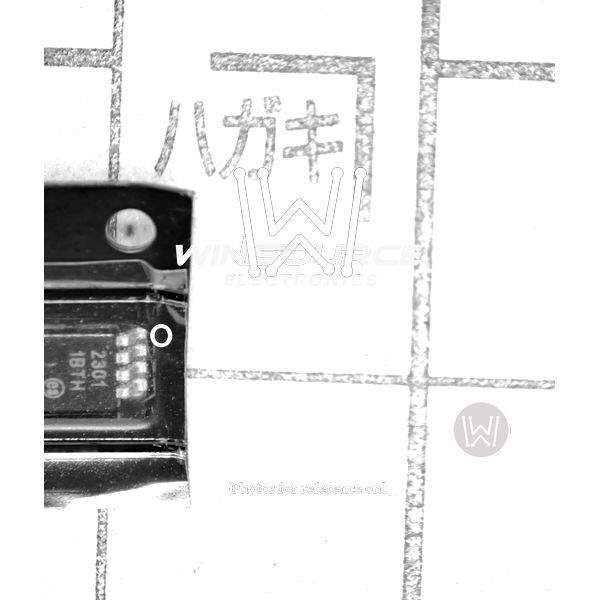

The EMC2301-1-ACZL-TR is a sophisticated fan controller IC manufactured by Microchip Technology, designed to provide precise fan speed control in a variety of electronic applications. This compact, feature-rich component is ideal for systems that require reliable thermal management, such as computer servers, gaming consoles, and telecommunications equipment.

Key Features

• Multiple Fan Control: The EMC2301-1-ACZL-TR can manage up to four fans independently, allowing for customized cooling strategies across different system components.
• Automatic Fan Speed Adjustment: With its built-in automatic fan speed control, this IC can adjust the fan speeds based on temperature inputs, ensuring optimal cooling and noise reduction.
• PWM Output: The device provides Pulse Width Modulation (PWM) outputs for each fan, enabling precise speed control and power efficiency.
• I²C Interface: Equipped with an I²C interface, the EMC2301-1-ACZL-TR allows for easy integration into system designs and communication with microcontrollers or other I²C-compatible devices.
• Robust Protection Features: The IC includes fault detection and protection mechanisms to prevent damage from locked rotor conditions, over-temperature, and over-voltage scenarios.
• Programmable Fan Startup: Users can program the fan start-up speed and time, offering flexibility to meet specific system start-up requirements.
• Energy Efficient: The device is designed for energy-saving operation, which is critical for battery-powered and energy-conscious applications.

Applications

The EMC2301-1-ACZL-TR is versatile and can be used in a wide range of applications where thermal management is crucial. Its precise control and robust protection features make it suitable for:

• Desktop and Laptop Computers
• Data Centers and Server Farms
• Networking and Telecommunication Equipment
• Gaming Systems
• Industrial and Automotive Systems

Product Specifications

The EMC2301-1-ACZL-TR is available in a compact package and is designed for easy mounting on printed circuit boards. The product is lead-free and RoHS compliant, reflecting Microchip Technology's commitment to environmental sustainability.

For detailed technical specifications, application notes, and support resources, customers are encouraged to visit Microchip Technology's official website or contact their sales and support team.
