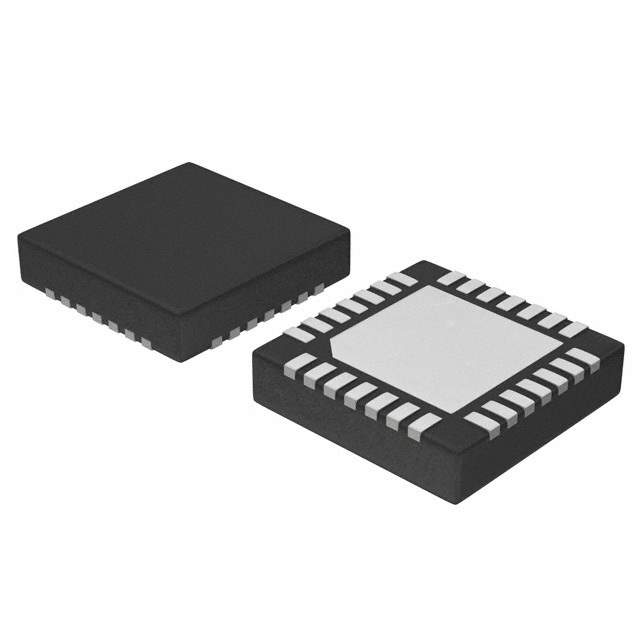

dSPIC33FJ09GS302-I/MM Digital Signal Controller

The dSPIC33FJ09GS302-I/MM is a high-performance 16-bit Digital Signal Controller (DSC) from Microchip Technology, designed to offer the best of both worlds: the processing power of a digital signal processor (DSP) and the functionality of a microcontroller (MCU). This makes it an ideal choice for applications requiring advanced algorithms and control, such as in power supplies, motor control, lighting, and converters.

Key Features

• Core Performance: The device operates at a maximum frequency of 40 MHz, with a modified Harvard architecture that enhances the execution of DSP instructions, providing the computational power necessary for complex algorithms.
• Program Memory: It comes with 9 KB of on-chip flash memory, which is ample for storing firmware that controls various applications.
• Data RAM: With 1 KB of data RAM, the controller can handle multiple tasks and data-intensive operations efficiently.
• Advanced Peripherals: This DSC includes a variety of peripherals such as PWM outputs, analog-to-digital converters (ADCs), and communication interfaces like I²C, SPI, and UART, providing versatile connectivity and control options.
• Power Management: The dSPIC33FJ09GS302-I/MM is designed for low-power operation, featuring power-saving modes such as Sleep and Idle, which are essential for battery-powered or energy-sensitive applications.
• Robust Design: It is available in a 28-pin QFN package, ensuring a compact footprint for space-constrained applications while also providing robustness with an industrial temperature range of -40°C to +125°C.

Applications

With its DSP capabilities, the dSPIC33FJ09GS302-I/MM is well-suited for a variety of applications, including:

• Switch Mode Power Supplies (SMPS)
• DC-DC Converters
• Brushless DC (BLDC) Motor Control
• LED Lighting Systems
• Power Inverters
• Battery Management Systems

Microchip's dSPIC33FJ09GS302-I/MM is engineered to address the needs of developers seeking a single-chip solution that offers both control and digital signal processing capabilities. Its combination of performance, memory, peripherals, and power efficiency makes it a versatile choice for a wide range of power management and control applications.
