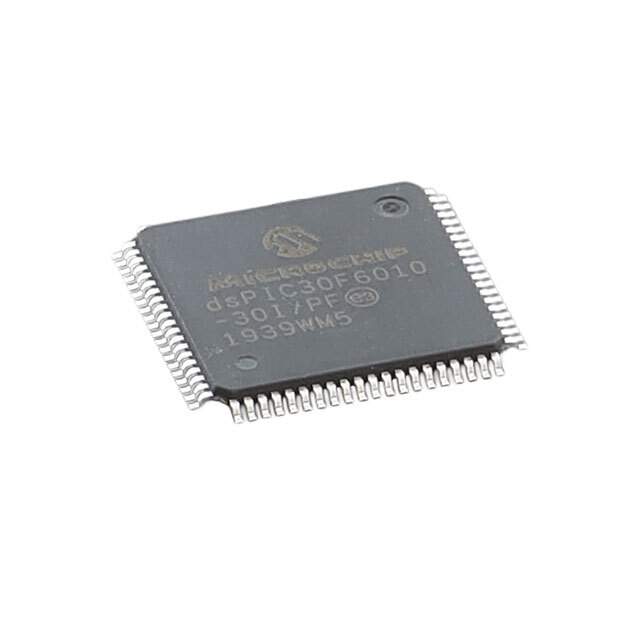

Product Overview: DSPIC30F6010-30I/PF from Microchip Technology

The DSPIC30F6010-30I/PF is a high-performance, 16-bit Digital Signal Controller (DSC) from Microchip Technology, designed to deliver the functionality of a microcontroller with the computational power of a Digital Signal Processor (DSP). This hybrid device is ideal for applications that require complex, real-time signal processing combined with the ease of use of a microcontroller.

Key Features

• High-Performance DSC Core: The DSPIC30F6010-30I/PF features a modified Harvard architecture with an operating speed of up to 30 MIPS (Million Instructions Per Second), allowing for fast and efficient signal processing capabilities.
• Ample Program Memory: With 144 KB of on-chip Flash program memory, this DSC provides ample space for storing complex algorithms and applications.
• Generous RAM: It is equipped with 8 KB of RAM, which can be used for data buffering and manipulation during intense processing tasks.
• Robust I/O Capabilities: The device includes various input/output options, such as digital I/O pins, analog inputs, and PWM outputs, offering flexibility in interfacing with external devices and sensors.
• Advanced Peripherals: Onboard peripherals like timers, counters, UART, SPI, and I2C modules facilitate communication and timing operations, enhancing the controller's versatility.
• Flexible Oscillator Options: The DSPIC30F6010-30I/PF supports multiple oscillator modes, including an internal RC oscillator and an external crystal oscillator, providing options for precise timing requirements.
• Low Power Consumption: Despite its processing prowess, this DSC is designed for low power consumption, making it suitable for power-sensitive applications.
• Temperature Range: It operates within an industrial temperature range of -40°C to +85°C, ensuring reliability under various environmental conditions.

Applications

The DSPIC30F6010-30I/PF is versatile enough to fit a wide range of applications, particularly where advanced control and signal processing are required. Typical applications include:

• Motor Control and Drives
• Power Conversion
• Audio Processing
• Industrial Automation
• Instrumentation and Measurement Systems

With its robust feature set, the DSPIC30F6010-30I/PF from Microchip Technology is a powerful solution for developers looking to integrate DSP capabilities with the ease of a microcontroller's interface, providing a flexible platform for a multitude of advanced applications.
