Category Crystals, Oscillators, Resonators - Pin Configurable/Selectable Oscillators
Mfr Microchip Technology
Series DSC60XX
Package Bag
Product Status Obsolete
Base Resonator MEMS
Type XO (Standard)
Frequency - Output 1 74.1758MHz, 74.25MHz
Output CMOS
Voltage - Supply 1.71V ~ 3.63V
Frequency Stability ±25ppm
Temperature Range - Operating -40°C ~ 85°C
Current - Supply (Max) 1.3mA (Typ)
Size / Dimension 0.079" L x 0.063" W (2.00mm x 1.60mm)
Height 0.035" (0.89mm)
Package / Case 4-VFLGA
Standard Package 100
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8542.39.0001
Win Source Part Number 1343100-DSC6021MI2A-009V
Ultra Librarian 3D Model Ultra Librarian DSC6021MI2A-009V CAD Model

Description

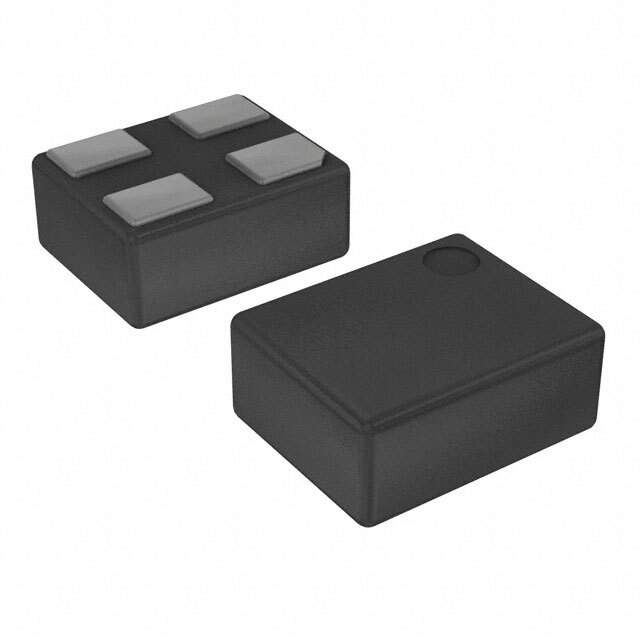

Microchip Technology's DSC6021MI2A-009V: A Compact and Efficient MEMS Oscillator

The DSC6021MI2A-009V is a state-of-the-art MEMS (Micro-Electro-Mechanical Systems) oscillator designed and manufactured by Microchip Technology. This product is part of Microchip's extensive lineup of timing solutions that are engineered to provide high performance and reliability for a wide range of applications. The DSC6021 series is particularly known for its compact footprint, low power consumption, and excellent stability.

Key Features

  • Compact Size: The DSC6021MI2A-009V boasts a miniature footprint of 2.0 x 1.6 mm, making it an excellent choice for space-constrained applications.
  • Frequency Range: This device offers a stable frequency output of 9 MHz, suitable for various digital applications.
  • Low Power Consumption: Designed for energy-sensitive projects, it operates with a low current draw, significantly extending battery life in portable devices.
  • Stability: The oscillator provides excellent frequency stability, which is critical for maintaining performance in temperature-varying environments.
  • Supply Voltage: It operates at a supply voltage (Vdd) of 1.8V, aligning with the needs of modern low-voltage electronics.
  • Output Type: The device features a CMOS output, offering compatibility with most digital circuits.

Applications

The DSC6021MI2A-009V is versatile and can be used in a variety of applications, including but not limited to:

  • Portable and wearable technology
  • Wireless communication devices
  • Internet of Things (IoT) devices
  • Industrial and automotive systems
  • Medical equipment

Quality and Reliability

Microchip Technology is a leader in the semiconductor industry, known for its commitment to quality and reliability. The DSC6021MI2A-009V is no exception, built to meet the stringent requirements of modern electronic devices. With its robust design and proven performance, this MEMS oscillator is an ideal timing solution for designers looking to enhance their products with precision and efficiency.

For further information, including detailed specifications, application notes, and support resources, please visit the official Microchip Technology website or contact their customer support team.
