Products specifications

Category Crystals, Oscillators, Resonators - Pin Configurable/Selectable Oscillators
Mfr Microchip Technology
Series DSC60XX
Package Tape & Reel
Product Status Obsolete
Base Resonator MEMS
Type XO (Standard)
Frequency - Output 1 25Mhz, 50MHz
Output CMOS
Voltage - Supply 1.71V ~ 3.63V
Frequency Stability ±25ppm
Temperature Range - Operating -40°C ~ 85°C
Current - Supply (Max) 1.3mA (Typ)
Size / Dimension 0.079" L x 0.063" W (2.00mm x 1.60mm)
Height 0.035" (0.89mm)
Package / Case 4-VFLGA
Standard Package 1,000
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8542.39.0001
Win Source Part Number 1343337-DSC6023MI2A-00A5T
Ultra Librarian 3D Model Ultra Librarian DSC6023MI2A-00A5T CAD Model

Description

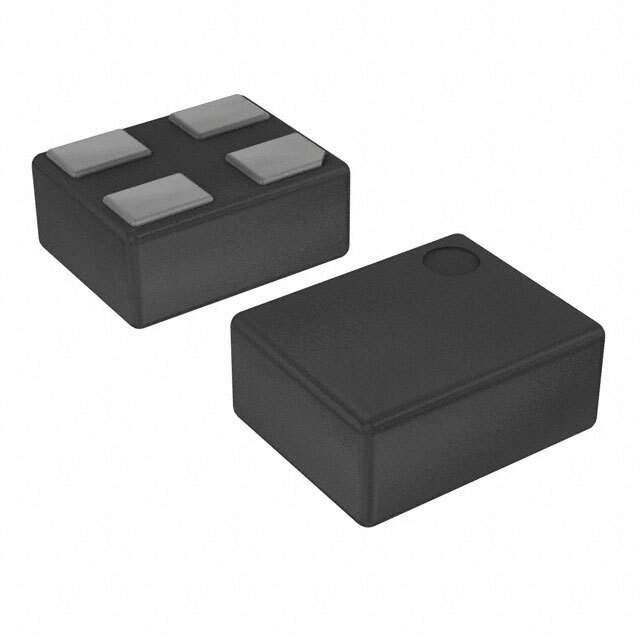

Product Overview: DSC6023MI2A-00A5T

The DSC6023MI2A-00A5T is a high-performance, low-power MEMS oscillator from the reputable manufacturer Microchip Technology. This compact and reliable timing solution is designed to meet the stringent demands of modern electronic devices, providing a stable and precise clock signal that is essential for system timing.

Key Features

  • Frequency Range: This oscillator operates at a fixed frequency of 40 MHz, which is suitable for a wide variety of applications including microprocessors, networking, and telecommunications equipment.
  • Supply Voltage: The device supports a supply voltage range of 2.25V to 3.63V, allowing for flexibility in different power environments and compatibility with various logic levels.
  • Low Power Consumption: With its low power consumption, the DSC6023MI2A-00A5T is an excellent choice for portable and battery-powered applications where power efficiency is critical.
  • Stability: It offers superb frequency stability, ensuring consistent performance over a range of environmental conditions including temperature variations.
  • Package: The oscillator comes in a compact 4-SMD, no-lead package, making it ideal for space-constrained applications without compromising on performance.
  • Output Type: It provides a CMOS output, which is widely used and easily interfaced with most digital integrated circuits.

Applications

The DSC6023MI2A-00A5T is versatile and can be used in a variety of applications, such as:

  • Consumer Electronics
  • IoT Devices
  • Wearable Technology
  • Smart Home Systems
  • Industrial Controls
  • Medical Devices
  • Automotive Systems

Quality and Reliability

Microchip Technology is known for its commitment to quality and the DSC6023MI2A-00A5T is no exception. It is designed to meet the high reliability standards required in industrial and automotive applications, ensuring long-term performance and stability.

With its combination of features, the DSC6023MI2A-00A5T MEMS oscillator from Microchip Technology stands out as a robust and efficient solution for designers looking to improve their system's timing accuracy while maintaining power efficiency and saving board space.
