Microchip Technology DSC6021CE1A-002P: A Compact, Low-Power MEMS Oscillator

The DSC6021CE1A-002P is a high-performance, ultra-compact, low-power silicon MEMS oscillator from Microchip Technology, designed to offer a superior alternative to traditional quartz crystal oscillators. This device is part of Microchip's extensive range of timing solutions that are known for their reliability and precision.

Key Features

• Frequency Range: The DSC6021CE1A-002P provides a stable frequency output of 2 MHz, which is ideal for a wide range of applications that require precise timing.
• Supply Voltage: It operates at a supply voltage range of 1.71V to 3.63V, making it suitable for battery-powered and portable devices where power consumption is critical.
• Low Power Consumption: The oscillator is designed for energy efficiency, with a typical current draw of only 2.5 mA, thereby extending battery life in portable applications.
• Stability: It offers excellent frequency stability of ±25 ppm over the industrial temperature range of -40°C to +85°C, ensuring reliable performance under varying environmental conditions.

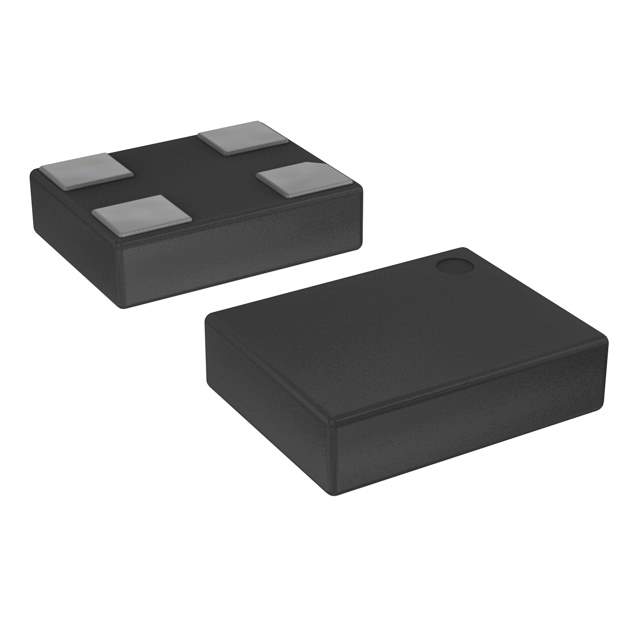

• Package: The DSC6021CE1A-002P comes in a compact 4-SMD, no lead package, with dimensions of 2.5 mm x 2.0 mm, allowing for high-density mounting and saving valuable board space.
• Output Type: The device provides a CMOS output, which is compatible with most digital circuits, ensuring easy integration into a variety of designs.

Applications

The DSC6021CE1A-002P MEMS oscillator is versatile and can be used in multiple applications, including:

• Portable and wearable electronics
• Internet of Things (IoT) devices
• Industrial controls and automation
• Medical monitoring equipment
• Wireless communication systems

Microchip Technology's DSC6021CE1A-002P is an excellent choice for designers looking for a reliable, low-power, and space-saving timing solution. Its robust performance and ease of use make it an ideal component for modern electronic systems where precision and power efficiency are paramount.
