Microchip Technology's DSC1001DI5-100.0000: Precision Silicon Oscillator

The DSC1001DI5-100.0000 is a high-quality, low-power silicon MEMS oscillator designed and manufactured by Microchip Technology. This state-of-the-art component is part of the DSC1001 series, which is known for its exceptional stability and reliability. The DSC1001DI5-100.0000 offers a fixed output frequency of 100.0000 MHz, providing a precise clocking solution for a wide range of electronic applications.

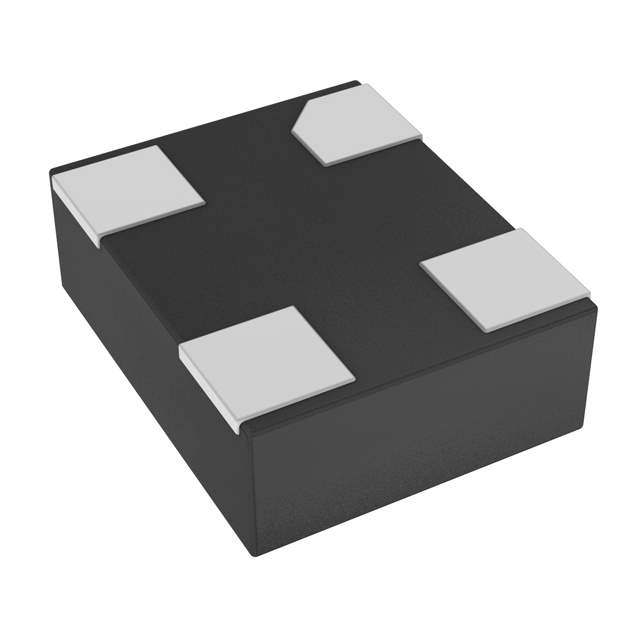

This silicon oscillator is housed in a compact 4-SMD, no lead package, making it suitable for space-constrained applications. The product dimensions are designed to meet industry-standard footprints, allowing for easy integration into existing designs without the need for significant board modifications.

One of the key features of the DSC1001DI5-100.0000 is its low power consumption, which makes it an ideal choice for battery-powered devices and energy-sensitive applications. It operates with a supply voltage ranging from 2.25V to 3.63V, which provides designers with flexibility in power supply design while maintaining tight frequency stability over the entire voltage range.

The oscillator's performance is characterized by a tight frequency stability of ±25 ppm over the industrial temperature range of -40°C to +85°C. This ensures reliable operation even in harsh environmental conditions, making it well-suited for industrial, automotive, and telecommunications equipment.

Additionally, the DSC1001DI5-100.0000 offers integrated frequency stability with a low jitter and phase noise performance, contributing to high signal integrity in digital communication systems. Its fast start-up time is also advantageous in applications where quick power-up sequences are critical.

As with all Microchip products, this oscillator is designed for long-term availability, which is crucial for lifecycle management in professional electronics. The DSC1001DI5-100.0000 is available in both commercial and industrial temperature grades, providing options for a variety of operating environments.

Overall, the DSC1001DI5-100.0000 from Microchip Technology represents a reliable, high-performance solution for designers looking to enhance their system's timing accuracy with a compact, energy-efficient, and robust silicon oscillator.
