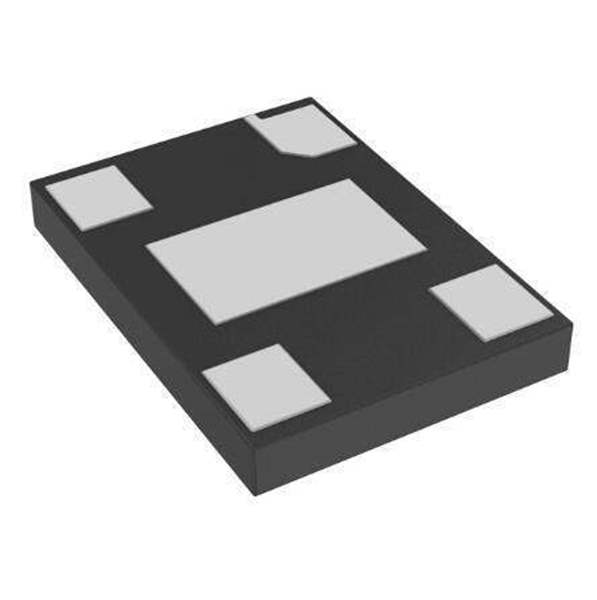

DSC1001AE2-080.0000 Microchip Technology
Same model may have multiple batches, images only for reference.

DSC1001AE2-080.0000

Part No DSC1001AE2-080.0000
Manufacturer Microchip Technology
Catalog Oscillators
Description MEMS OSC XO 80.0000MHZ CMOS SMD
Datasheet
DSC1001AE2-080.0000 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Win Source Part Number Cross
Manufacturer Microchip Technology
Category Crystals, Oscillators, Resonators Oscillators
Packaging Tube
Part Status Active
Base Resonator MEMS
Frequency 80 MHz
Output CMOS
Voltage - Supply 1.8V ~ 3.3V
Frequency Stability ±25ppm
Operating Temperature -20°C ~ 70°C
Current - Supply (Max) 10.5mA
Mounting Type Surface Mount
Package / Case 4-VDFN Exposed Pad
Win Source Part Number WS1211289-DSC1001AE2-080.0000
Ultra Librarian 3D Model Ultra Librarian DSC1001AE2-080.0000 CAD Model

Description

80 MHz XO (Standard) CMOS Oscillator 1.8V ~ 3.3V Standby (Power Down) 4-VDFN Exposed Pad
