Microchip Technology's ATTINY816-MNR Product Overview

The ATTINY816-MNR is a high-performance, low-power microcontroller from Microchip Technology, designed to provide a versatile and efficient solution for a wide range of embedded applications. This compact and feature-rich MCU is part of the tinyAVR® 1-Series and is based on the AVR® processor with hardware multiplier, running at up to 20MHz. With its advanced RISC architecture, the ATTINY816-MNR delivers a perfect combination of power efficiency and processing capability.

Key Features

• Advanced Core: The device features a high-performance AVR® core with hardware multiplier, capable of executing most instructions in a single clock cycle.
• Memory: It comes with 8KB of in-system self-programmable flash memory, 512 Bytes EEPROM, and 512 Bytes of internal SRAM.
• Peripherals: A rich set of peripherals includes an Event System, a 10-bit ADC with internal voltage references, a 5-bit DAC, multiple communication modules (USART, SPI, and I2C), Configurable Custom Logic (CCL), and more.
• Power Efficiency: Designed for power-sensitive applications, the ATTINY816-MNR supports multiple power-saving modes to reduce power consumption.
• Interface Flexibility: The microcontroller features a Universal Serial Interface (USI), which can be used for I2C or SPI communications.
• UPDI Interface: It includes a Unified Program and Debug Interface (UPDI) for easy programming and debugging.

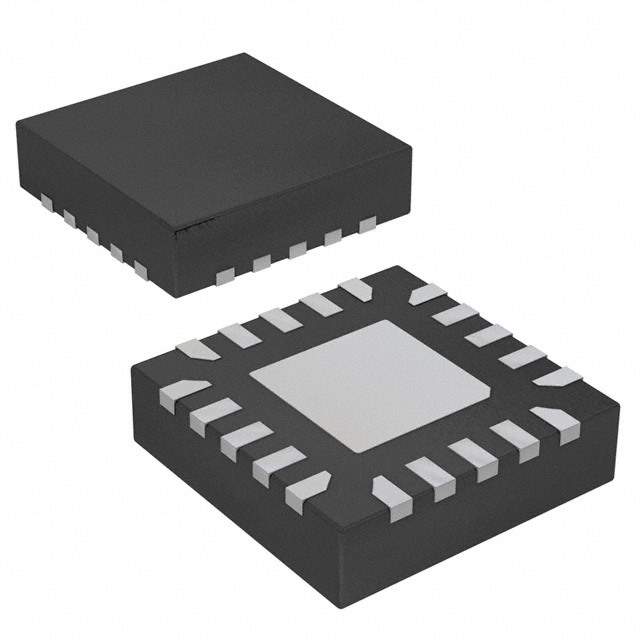

• Packages: The ATTINY816-MNR is available in various packages, including a 3x3 mm UDFN, 4x4 mm QFN, and a 20-pin SOIC.

Applications

The versatility of the ATTINY816-MNR makes it an ideal choice for a variety of applications such as consumer electronics, wearable devices, sensor control systems, and other low-power, space-constrained applications. Its robust set of features and ease of use also make it suitable for hobbyists and educational purposes, where flexibility and low power consumption are valued.

With its integration of power, performance, and peripherals in a small package, the ATTINY816-MNR from Microchip Technology stands out as a microcontroller that can meet the needs of modern embedded design challenges.
