Microchip Technology ATTINY24A-MMH

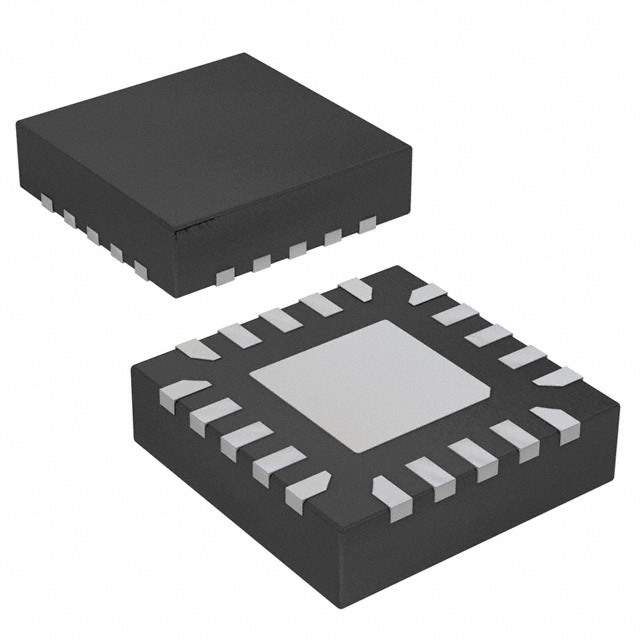

The ATTINY24A-MMH is a high-performance, low-power Microchip AVR® 8-bit microcontroller that combines 2KB ISP flash memory, 128B EEPROM, 128B SRAM, 12 general purpose I/O lines, 32 general purpose working registers, a wide range of flexible and powerful peripherals, and a 8/16-bit timer/counter. All of these features come in a compact 20-pin QFN package, making it ideal for a wide variety of applications that require a small form factor and low power consumption.

Key Features:

• High-Performance, Low-Power AVR® 8-Bit Microcontroller: Delivers efficient operation at a wide range of voltages and frequencies, making it suitable for battery-operated applications.
• Advanced RISC Architecture: With 131 powerful instructions, most of which are executed in a single clock cycle, the ATTINY24A-MMH achieves throughputs approaching 1 MIPS per MHz, balancing power consumption and processing speed.
• Memory: Comes with 2KB of in-system programmable flash, 128B EEPROM, and 128B SRAM for data storage and efficient code management.
• I/O and Packages: Offers 12 programmable I/O lines and is available in a space-saving 20-pin QFN package.
• Peripheral Features: Includes an 8/16-bit timer/counter with PWM, internal and external interrupts, a 4-channel 10-bit A/D converter, programmable watchdog timer with internal oscillator, and a Universal Serial Interface (USI).
• Data Retention: Data retention is guaranteed for 20 years at 85°C or 100 years at 25°C, ensuring long-term reliability for industrial applications.
• Temperature Range: Operates within the industrial temperature range of -40°C to 85°C.

Applications:

The ATTINY24A-MMH is designed for use in a variety of applications, including sensor nodes, automotive, consumer electronics, and industrial control systems. Its small size and low power consumption make it particularly well-suited for portable and power-sensitive devices.

Summary:

The Microchip ATTINY24A-MMH microcontroller offers a blend of efficiency, flexibility, and reliability, making it an excellent choice for designers who need a compact, low-power, yet powerful MCU solution. Whether you're working on a simple control system or a complex networked device, the ATTINY24A-MMH provides the performance and features necessary to meet the demands of your application.
