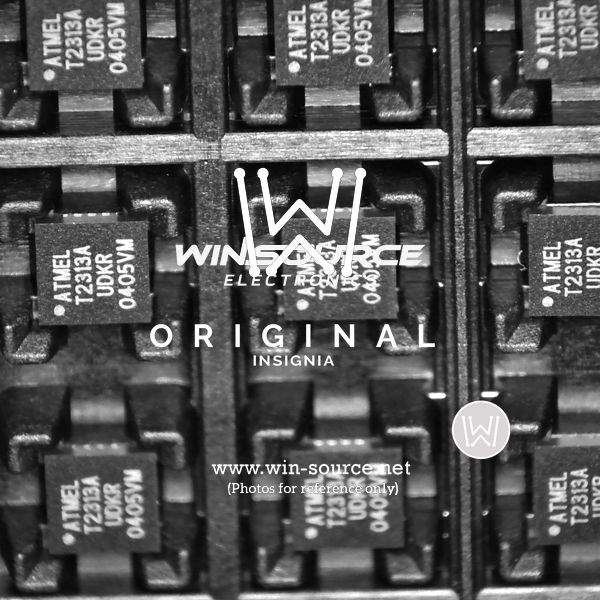

Microchip Technology's ATTINY2313A-MU Microcontroller
The ATTINY2313A-MU from Microchip Technology is a high-performance, low-power AVR® 8-bit microcontroller that combines 2KB ISP flash memory, 128B EEPROM, 128B SRAM, 18 general-purpose I/O lines, 32 general-purpose working registers, a single 16-bit timer/counter with compare modes, a single 8-bit timer/counter with compare modes, as well as a watchdog timer with internal oscillator. This versatile microcontroller also includes a full duplex USART, a byte-oriented 2-wire serial interface, SPI serial port, and a 10-bit A/D converter with a 4-channel multiplexer. The device operates between 1.8-5.5 volts.
Encased in a 20-pin QFN (Quad Flat No-lead) package, the ATTINY2313A-MU is designed for optimal performance in a compact form factor. Its architecture is engineered to handle complex tasks while maintaining energy efficiency, making it an ideal choice for a wide range of applications, including industrial control systems, automotive, consumer electronics, and more.
With its ability to be programmed via In-System Programming (ISP), the ATTINY2313A-MU offers great flexibility for updates and firmware changes without the need for additional equipment. The microcontroller's enhanced RISC (Reduced Instruction Set Computer) architecture enables it to execute powerful instructions in a single clock cycle, allowing for optimizations in power consumption versus processing speed.
Key features of the ATTINY2313A-MU include:
- High-performance, low-power AVR® 8-bit microcontroller
- Advanced RISC architecture with 32 x 8 general-purpose working registers
- Non-volatile program and data memories with 2KB of in-system self-programmable flash memory
- JTAG (Joint Test Action Group) interface for on-chip-debug
- Up to 20 MIPS (Million Instructions Per Second) throughput at 20MHz
- Power-on Reset and Programmable Brown-out Detection
- Internal calibrated oscillator for reliable operation
The ATTINY2313A-MU microcontroller represents a robust solution for designers looking for a microcontroller that delivers both performance and versatility. Microchip Technology's commitment to quality ensures that this product meets the rigorous standards required for a wide array of applications.
