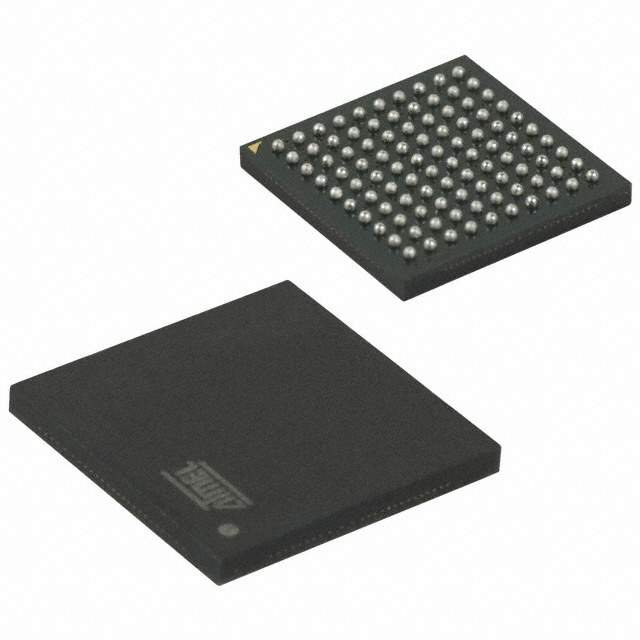

The ATSAM4S4CB-CN is a high-performance microcontroller unit (MCU) from Microchip Technology, which is part of their extensive SAM4S series. This device is built around a powerful ARM Cortex-M4 processor core, featuring a floating-point unit (FPU) that operates at frequencies up to 120 MHz. The ATSAM4S4CB-CN is designed to meet the demands of a wide range of embedded applications, including industrial control systems, medical devices, automotive electronics, and IoT devices.

Key Features:

• Core: ARM Cortex-M4 with FPU, running up to 120 MHz
• Memory: 256KB of embedded Flash and 64KB of SRAM, providing ample space for complex applications and software.
• Connectivity: Offers multiple communication interfaces including USART, SPI, I2C, and USB 2.0 full-speed device and embedded host.
• Power Efficiency: Designed for low-power operation with a range of power-saving modes, making it ideal for battery-powered and portable applications.
• Analog Features: Includes a 12-bit ADC with up to 16 channels and a 12-bit DAC for versatile analog interfacing.
• Timer/Counter: Features PWM, general-purpose timers, and a real-time timer for precise event management and timing operations.
• Security: Equipped with a hardware cryptographic accelerator, offering support for AES, DES, 3DES, and SHA, ensuring secure data communication and storage.
• Packages: Available in a 64-pin QFP package, offering a compact footprint for space-constrained applications.

Applications:

The versatility of the ATSAM4S4CB-CN makes it suitable for a myriad of applications. Its robust processing capabilities, coupled with extensive communication interfaces and analog features, enable it to perform in complex embedded systems. It is particularly well-suited for applications requiring secure data exchange and energy efficiency, such as smart metering, home automation, handheld devices, and industrial automation systems.

Support and Resources:

Microchip Technology provides comprehensive support for the ATSAM4S4CB-CN MCU, including development tools, software libraries, and documentation. Engineers can access the Atmel Studio IDE, data sheets, application notes, and user guides to facilitate the design process and reduce time to market.
