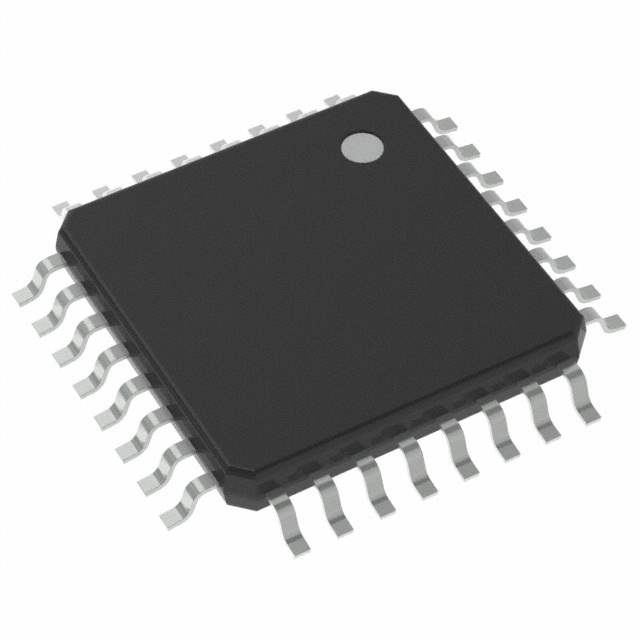

Microchip Technology ATMEGA168-20AI Microcontroller
The ATMEGA168-20AI is a high-performance, low-power Atmel 8-bit AVR RISC-based microcontroller from Microchip Technology, combining 16KB ISP flash memory with read-while-write capabilities, 512B EEPROM, 1KB SRAM, 23 general purpose I/O lines, 32 general purpose working registers, three flexible timer/counters with compare modes, internal and external interrupts, serial programmable USART, a byte-oriented 2-wire serial interface, SPI serial port, a 6-channel 10-bit A/D converter (8 channels in TQFP and QFN/MLF packages), programmable watchdog timer with internal oscillator, and five software selectable power saving modes. This robust feature set makes it ideal for a wide range of applications in various fields, such as automation, consumer electronics, and automotive.
The device operates at a voltage range of 1.8-5.5 volts, at 20MHz maximum frequency, ensuring a good balance between power consumption and processing speed. With its advanced RISC architecture, the ATMEGA168-20AI executes powerful instructions in a single clock cycle, enabling the microcontroller to achieve throughputs approaching 1 MIPS per MHz, balancing power consumption and processing capability.
The ATMEGA168-20AI features an on-chip analog comparator and offers various options for boot code section with independent lock bits. Its In-System Programming by On-chip Boot Program allows downloading new code without the need for an external programmer. The ATmega168 supports a QTouch library, making it simple to implement capacitive touch buttons, sliders, and wheels. It also features a Universal Serial Interface module that can be used for two or three-wire synchronous serial communication.
The device is packaged in a 28-lead PDIP form factor, providing a convenient layout for prototyping and production. Its robust set of peripherals and extensive interrupt system ensure the ATMEGA168-20AI can handle complex tasks while maintaining a low power footprint, making it an excellent choice for designers looking for a versatile and efficient microcontroller solution.
