Microchip Technology's ATA6561-GBQW-N CAN Transceiver

The ATA6561-GBQW-N is an advanced CAN (Controller Area Network) transceiver produced by Microchip Technology, designed to serve as an interface between a CAN protocol controller and the physical two-wire CAN bus. This high-performance device is engineered to facilitate reliable communication in automotive and industrial applications where a robust network is critical for system functionality and safety.

Key Features:

• Compliance with Standards: The device is compliant with the ISO 11898-2, ISO 11898-5, and SAE J2962-2 standards, ensuring compatibility with the latest CAN specifications.
• High-Speed Operation: It supports CAN data transmission rates up to 5 Mbit/s, making it suitable for high-speed CAN networks.
• Low Power Modes: The ATA6561-GBQW-N offers different power modes including Sleep and Standby, contributing to reduced power consumption in the system.
• Robust Protection Features: It is equipped with protection against over-temperature, short-circuit, and voltage transients, enhancing the reliability of the network under harsh conditions.
• Wide Operating Voltage Range: The transceiver operates within a voltage range of 4.5V to 5.5V, accommodating a variety of automotive and industrial power systems.

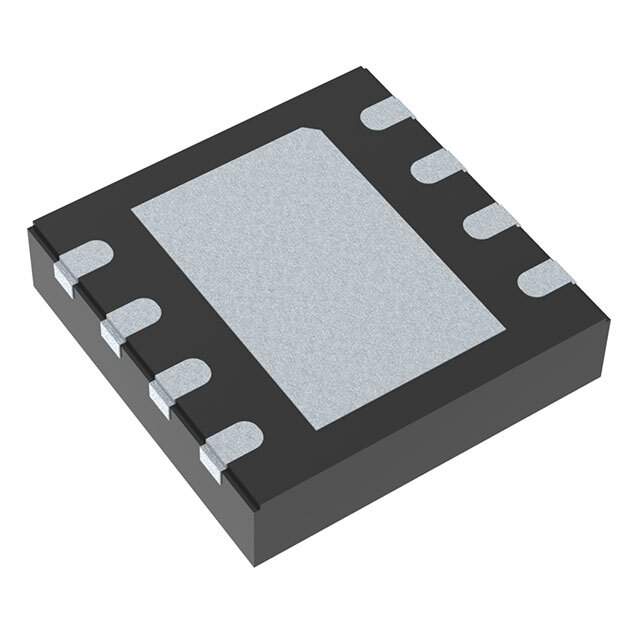

• Small Form Factor: The device comes in a small 8-pin package, making it an ideal choice for space-constrained applications.

Applications:

The ATA6561-GBQW-N is particularly well-suited for use in automotive networks, such as in-vehicle infotainment systems, body control modules, and advanced driver assistance systems (ADAS). It is also applicable to industrial automation systems, where reliable data transmission is essential for operational efficiency and safety.

Quality and Reliability:

Microchip Technology is known for its commitment to quality, and the ATA6561-GBQW-N is no exception. It is built to meet high standards of performance and reliability, ensuring that it can withstand the rigorous demands of both automotive and industrial environments.
