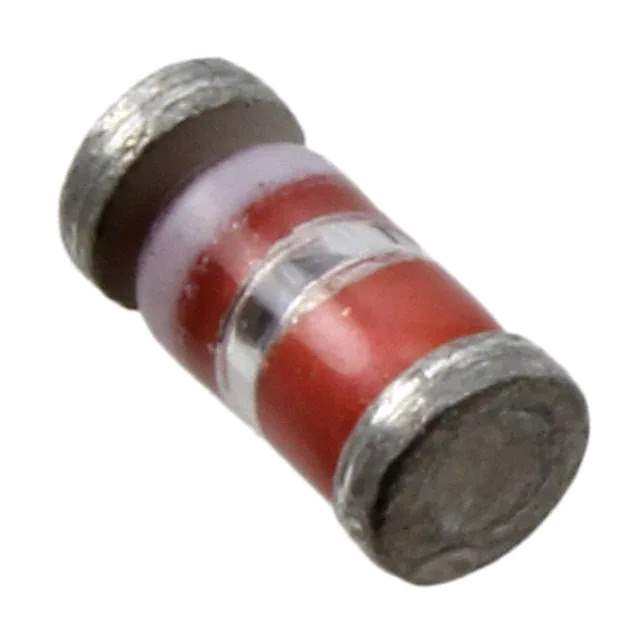

Product Overview: 1N5711UR-1 from Microchip Technology

The 1N5711UR-1 is a high-performance Schottky barrier diode designed and manufactured by Microchip Technology. This small signal diode is renowned for its low forward voltage drop and fast switching capabilities, making it an excellent choice for a wide range of applications, including high-frequency and fast switching circuits, voltage clamping, and protection against reverse voltage transients.

Key Features

• Low Forward Voltage Drop: The diode's Schottky barrier design ensures a low forward voltage drop, which enhances the overall efficiency of the circuit by minimizing power losses.
• Fast Switching Speed: With its ability to switch on and off rapidly, the 1N5711UR-1 is ideal for high-speed applications, contributing to improved performance and reduced signal distortion.
• Reverse Voltage Protection: It offers protection for sensitive electronic components by clamping reverse voltages and preventing them from reaching damaging levels.
• Hermetically Sealed: The diode is encapsulated in a hermetic package, ensuring robustness and reliability in harsh environmental conditions.
• Low Leakage Current: Exhibits a very low leakage current, which is critical for maintaining the integrity of the signal and reducing power consumption in standby modes.

Applications

The 1N5711UR-1 is versatile and can be used in various applications, including:

• Switching power supplies
• DC-DC converters
• High-frequency RF circuits
• Detector diodes
• Protection circuits

Specifications

Parameter Value Package Type DO-213AA Peak Repetitive Reverse Voltage 70V Forward Continuous Current 15mA Forward Voltage Drop 410mV @ 1mA Reverse Leakage Current 2μA @ 70V

With its robust design and reliable performance, the 1N5711UR-1 Schottky diode from Microchip Technology is a superior choice for designers looking to enhance their electronic circuits with a component that offers both efficiency and durability.
