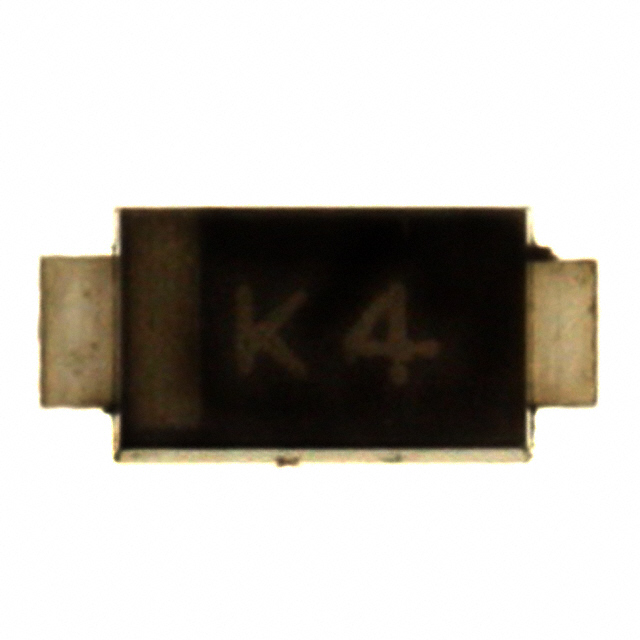

Same model may have multiple batches, images only for reference.
SM5819PL-TP Micro Commercial Co
Same model may have multiple batches, images only for reference.

SM5819PL-TP

Part No SM5819PL-TP
Manufacturer Micro Commercial Co
Catalog Diodes, Rectifiers - Single
Description DIODE SCHOTTKY 40V 1A SOD123FL
Datasheet
SM5819PL-TP Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Micro Commercial Co
Packaging Reel - TR
Status Active
Diode Type Schottky
Voltage - DC Reverse (Vr) (Max) 40V
Current - Average Rectified (Io) 1A
Voltage - Forward (Vf) (Max) @ If 600mV @ 1A
Speed(Frequency) Fast Recovery = 200mA (Io)
Current - Reverse Leakage @ Vr 100μA @ 40V
Capacitance @ Vr, F 110pF @ 4V, 1MHz
Mounting SMD (SMT)
Case / Package SOD-123FL
Operating Temperature - Junction -65°C to 125°C
Win Source Part Number 020955-SM5819PL-TP
Popularity Medium
Supply and Demand Status Limited
Quantity per package 2,500
Ultra Librarian 3D Model Ultra Librarian SM5819PL-TP CAD Model

Description

The 020955-SM5819PL-TP is a Schottky diode manufactured by Micro Commercial Co.

  • Voltage - DC reverse (Vr) (Max): 40V
  • Current - average rectified (Io): 1A
  • Voltage - forward (Vf) (Max) @ If: 600mV @ 1A
  • Current - reverse leakage @ Vr: 100μA @ 40V
  • Capacitance @ Vr, F: 110pF @ 4V, 1MHz
  • Operating temperature range: -65°C to 125°C
  • Ideal for: power supplies, motor drives, and DC-DC converters.
