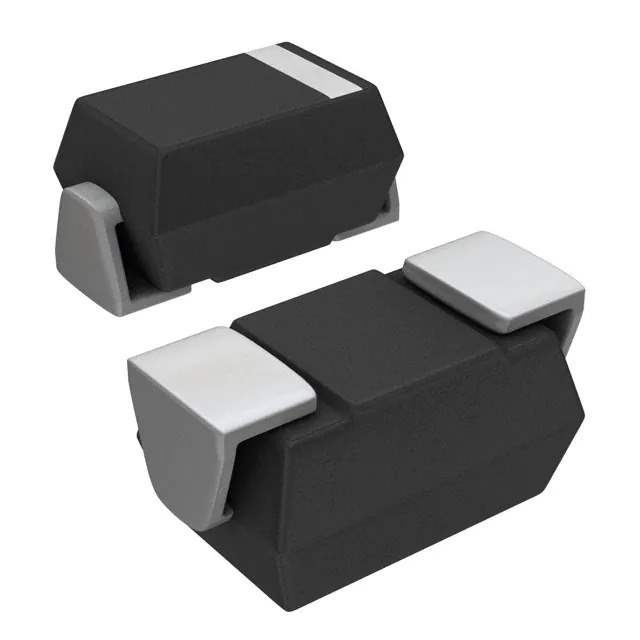

GS1M-TP Real Image
Same model may have multiple batches, images only for reference.

GS1M-TP

Part No GS1M-TP
Manufacturer Micro Commercial Co
Catalog Diodes, Rectifiers - Single
Description DIODE GEN PURP 1KV 1A DO214AC / Diode 1000 V 1A Surface Mount DO-214AC (HSMA)
Datasheet
GS1M-TP Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products - Diodes - Rectifiers - Single Diodes
Mfr Micro Commercial Co
Package Tape & Reel
Product Status Discontinued
Technology Standard
Voltage - DC Reverse (Vr) (Max) 1000 V
Current - Average Rectified (Io) 1A
Voltage - Forward (Vf) (Max) @ If 1.1 V @ 1 A
Speed Standard Recovery >500ns, > 200mA (Io)
Current - Reverse Leakage @ Vr 10 µA @ 1000 V
Capacitance @ Vr, F 15pF @ 4V, 1MHz
Mounting Type Surface Mount
Package / Case DO-214AC, SMA
Supplier Device Package DO-214AC (HSMA)
Operating Temperature - Junction -55°C ~ 150°C
Base Product Number GS1M
Standard Package 3,000 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.10.0080
Win Source Part Number 844899-GS1M-TP
Ultra Librarian 3D Model Ultra Librarian GS1M-TP CAD Model

Description

The 844899-GS1M-TP is a standard recovery rectifier diode with a maximum DC reverse voltage of 1000 V and an average rectified current of 1A.

  • Application: General Purpose Rectification
  • Maximum DC Reverse Voltage: 1000 V
  • Average Rectified Current: 1A
  • Voltage Forward: 1.1 V @ 1 A
  • Reverse Leakage Current: 10 μA @ 1000 V
  • Capacitance: 15pF @ 4V, 1MHz
  • Operating Temperature: -55°C to 150°C
  • Mounting: Surface Mountable
  • Package: DO-214AC, SMA
  • Status: Discontinued
  • Manufacturer: Micro Commercial Co.
