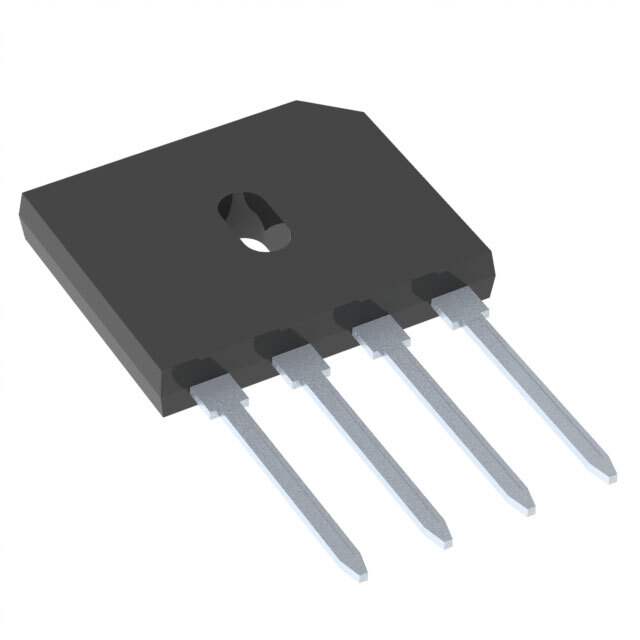

GBU15K-BP Real Image
Same model may have multiple batches, images only for reference.

GBU15K-BP

Part No GBU15K-BP
Manufacturer Micro Commercial Co
Catalog Bridge Rectifiers
Description BRIDGE RECTIFIER 15A 800V GBU
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Micro Commercial Co
Packaging Tube/Rail
Status Active
Diode Type Single Phase
Technology Standard
Voltage - Peak Reverse (Max) 800V
Current - Average Rectified (Io) 15A
Voltage - Forward (Vf) (Max) @ If 1.1V @ 7.5A
Current - Reverse Leakage @ Vr 5μA @ 800V
Temperature Range - Operating -55°C to 150°C (TJ)
Mounting Through Hole
Case / Package GBU
Win Source Part Number 137121-GBU15K-BP
Popularity Medium
Supply and Demand Status Limited
Quantity per package 1k pcs
Ultra Librarian 3D Model Ultra Librarian GBU15K-BP CAD Model

Description

The Micro Commercial Co GBU15K-BP is a single-phase diode.

  • Voltage Peak Reverse: 800V
  • Average Rectified Current: 15A
  • Forward Voltage: 1.1V @ 7.5A
  • Reverse Leakage Current: 5μA @ 800V
  • Package: GBU
  • Operating Temperature: -55°C to 150°C
  • Ideal for: Discrete Semiconductor Products
