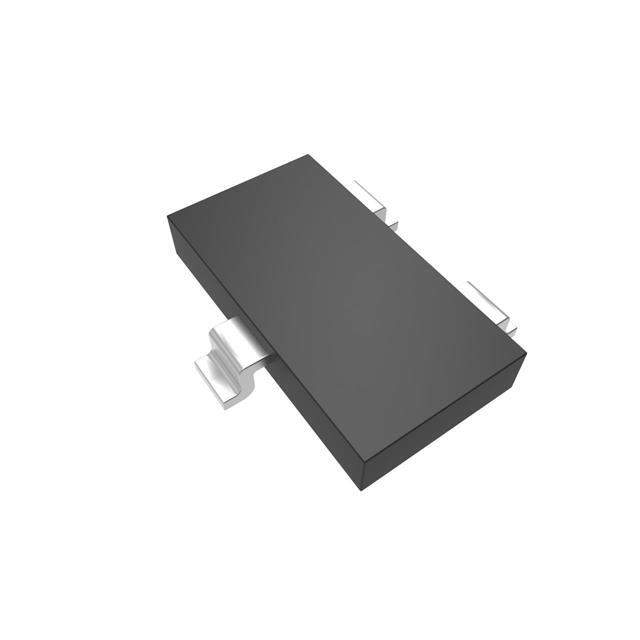

BAT54SWT-TP Real Image
Same model may have multiple batches, images only for reference.

BAT54SWT-TP

Part No BAT54SWT-TP
Manufacturer Micro Commercial Co
Catalog Diodes, Rectifiers - Arrays
Description DIODE ARRAY SCHOTTKY 30V SOT323
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer Micro Commercial Co
Packaging Reel
Diode Configuration 1 Pair Series Connection
Diode Type Schottky
Voltage - DC Reverse (Vr) (Maximum) 30V
Current - Average Rectified (Io) (per Diode) 200mA (DC)
Voltage - Forward (Vf) (Maximum) at If 1V at 100mA
Reverse Recovery Time (trr) 5ns
Current - Reverse Leakage at Vr 2μA at 25V
Operating Temperature - Junction -55°C ~ 125°C
Mounting Style SMD
Manufacturer Package SC-70, SOT-323
Supplier Device Package SOT-323
Part Number Series BAT54SWT
Manufacturer Pack Quantity 3,000
MSL Level 1 (Unlimited)
Popularity Medium
Supply and Demand Status Balance
Win Source Part Number 803148-BAT54SWT-TP
Ultra Librarian 3D Model Ultra Librarian BAT54SWT-TP CAD Model

Description

The Micro Commercial Co. BAT54SWT-TP is a Schottky diode.

  • Maximum Reverse Voltage: 30V
  • Maximum Forward Current: 200mA
  • Package: SOT-323
