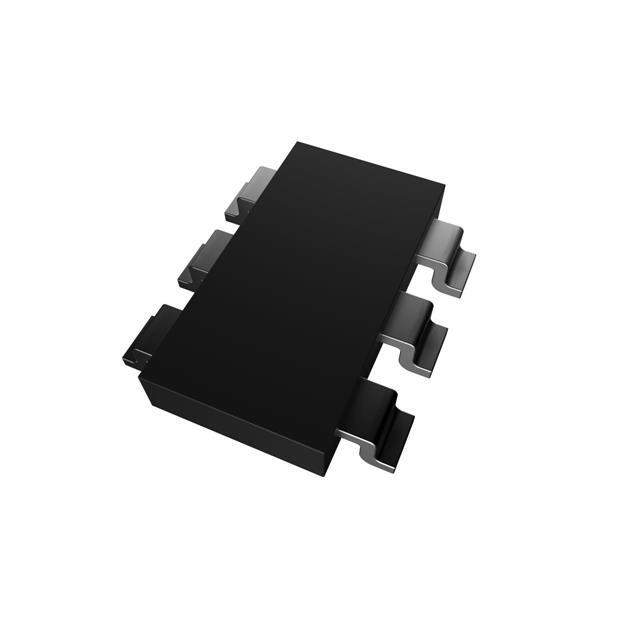

BAT54CDW-TP Real Image
Same model may have multiple batches, images only for reference.

BAT54CDW-TP

Part No BAT54CDW-TP
Manufacturer Micro Commercial Co
Catalog Diodes, Rectifiers - Arrays
Description DIODE ARRAY SCHOTTKY 30V SOT363
Datasheet
BAT54CDW-TP Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Estimated Pruduction Lead Time 23 Weeks
Features Diode Array 2 Pair Common Cathode Schottky 30 V 200mA (DC) Surface Mount 6-TSSOP, SC-88, SOT-363
Manufacturer Micro Commercial Co
Package Reel - TR
Speed Small Signal =< 200mA (Io), Any Speed
Mounting Surface Mount
Package 6-TSSOP, SC-88, SOT-363
Case / Package SOT-363
Family Name BAT54
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.10.0070
Other Part Number BAT54CDW-TPTR, BAT54CDW-TPDKR, BAT54CDWTP, BAT54CDW-TPCT
Quantity per package 3000
Popularity Medium
Supply and Demand Status Limited
Win Source Part Number 863487-BAT54CDW-TP
Ultra Librarian 3D Model Ultra Librarian BAT54CDW-TP CAD Model

Description

The Micro Commercial Co 863487-BAT54CDW-TP is a diode array that is designed for use in a variety of applications.

  • Configuration: Common cathode schottky
  • Maximum Forward Voltage Drop: 1.2V
  • Mounting Type: Surface Mount
  • Package: 6-TSSOP, SC-88, SOT-363
  • Family: BAT54
  • Speed: Small signal speed of less than 200mA (Io) and any speed
