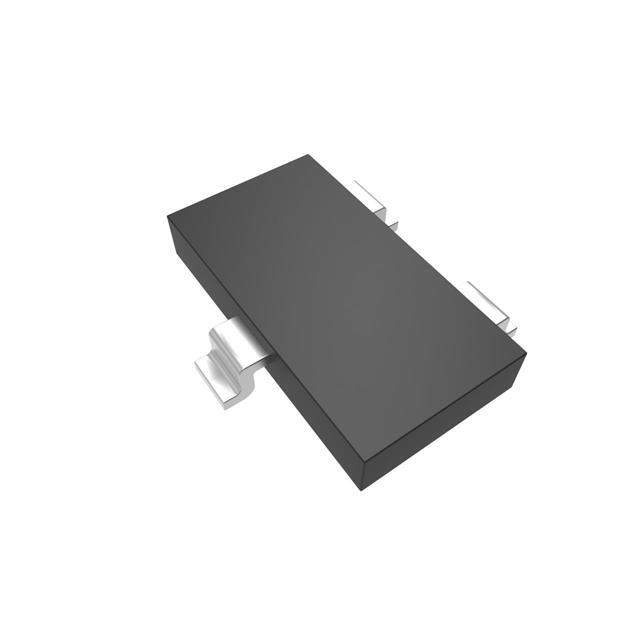

BAT54AT-TP Real Image
Same model may have multiple batches, images only for reference.

BAT54AT-TP

Part No BAT54AT-TP
Manufacturer Micro Commercial Co
Catalog Diodes, Rectifiers - Arrays
Description DIODE ARRAY SCHOTTKY 30V SOT523
Datasheet
BAT54AT-TP Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Micro Commercial Co
Packaging Reel - TR
Status Active
Diode Configuration 1 Pair Common Anode
Diode Type Schottky
Voltage - DC Reverse (Vr) (Max) 30V
Current - Average Rectified (Io) (per Diode) 200mA
Voltage - Forward (Vf) (Max) @ If 1V @ 100mA
Reverse Recovery Time (trr) 5ns
Current - Reverse Leakage @ Vr 2μA @ 25V
Operating Temperature - Junction -55°C to 125°C
Mounting SMD (SMT)
Case / Package SOT-523
Win Source Part Number 049217-BAT54AT-TP
Popularity Medium
Supply and Demand Status Balance
Quantity per package 3k pcs
Ultra Librarian 3D Model Ultra Librarian BAT54AT-TP CAD Model

Description

Description

The BAT54AT-TP is a versatile Schottky barrier diode that offers excellent switching performance with minimal losses. Its compact package makes it suitable for a variety of electronic designs.

Features and Benefits

  • Minimal power loss due to low forward voltage
  • High-speed switching
  • Compact SMD package for easy integration
  • Robust performance over a wide temperature range

Applications

  • RF circuits
  • Signal processing
  • High-speed switching applications
  • Clamping and low-current rectification
