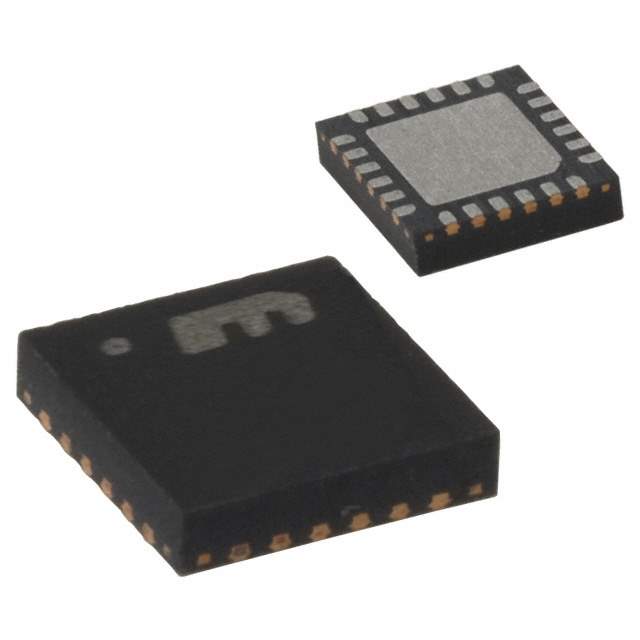

The MIC3263YML is a high-efficiency, constant-current LED driver from Micrel (now Microchip Technology). It's designed to power high-brightness LEDs from a wide input voltage range. This device integrates a high-side current sense, which simplifies the design and reduces the external component count. Its compact size and feature set make it suitable for various LED lighting applications.

Applications

• General LED lighting
• Automotive lighting
• Backlighting for LCD displays
• Industrial lighting
• Architectural lighting

Features

• Wide input voltage range
• High efficiency
• Constant current regulation
• Integrated high-side current sense
• PWM dimming capability
• Over-temperature protection
• Under-voltage lockout
• Small package size (ML)

Benefits

• High Efficiency: Minimizes power loss, leading to cooler operation and longer LED lifespan.
• Constant Current: Ensures consistent brightness and extends LED lifespan.
• Simplified Design: Integrated high-side current sense reduces external components and board space.
• Precise LED Current Control: Enables accurate brightness control and color consistency.
• Robust Protection Features: Protects the LED driver and the LEDs from damage due to over-temperature and under-voltage conditions.

Additional Details: The MIC3263YML is typically available in an ML (Micro Leadframe) package. It supports PWM dimming, allowing for precise control over LED brightness. The device's internal circuitry includes protection against over-temperature conditions, ensuring reliable operation even under demanding conditions. Input voltage ranges and output current capabilities vary depending on the specific configuration, so referring to the datasheet is crucial for detailed specifications.
