The MIC2843AYMT is a high-efficiency synchronous boost regulator from Micrel (now Microchip Technology). It's designed to provide a stable output voltage from a lower input voltage, making it suitable for battery-powered and portable applications. This regulator features high efficiency and low quiescent current to maximize battery life.

Applications

• Battery-powered portable devices
• LED backlighting
• Boost converters for LCD bias
• Handheld devices
• USB power boost

Features

• Input Voltage Range: 2.5V to 5.5V
• Output Voltage: Adjustable up to 40V
• Switching Frequency: 1.2 MHz
• High Efficiency: Up to 90%
• Low Quiescent Current: 20µA
• Internal Synchronous Rectifier: Eliminates the need for an external Schottky diode
• Over-Temperature Protection: Prevents damage due to excessive temperature.
• Under-Voltage Lockout (UVLO): Ensures proper startup and shutdown.

Benefits

• High Efficiency: Maximizes battery life in portable applications.
• Wide Input Voltage Range: Operates from a variety of input voltage sources.
• Adjustable Output Voltage: Allows for flexibility in selecting the desired output voltage.
• Internal Synchronous Rectifier: Reduces component count and improves efficiency.
• Small Package Size: Suitable for space-constrained applications.
• Protection Features: Enhances reliability and prevents damage to the regulator and connected circuitry.

Additional Details

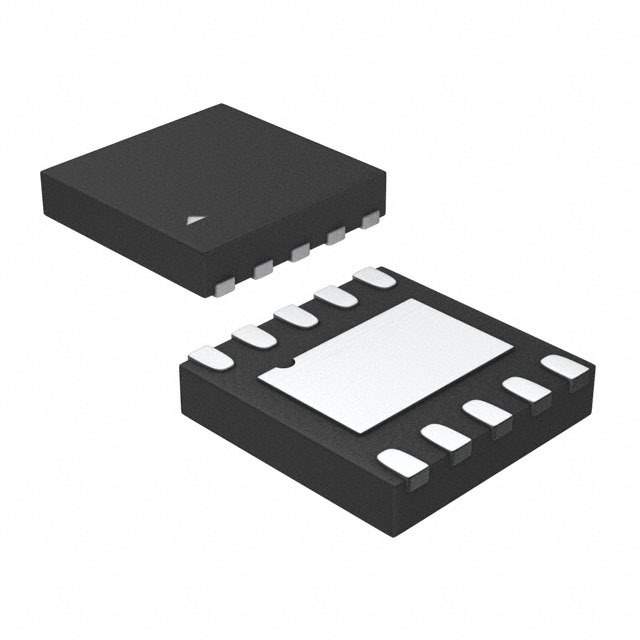

The MIC2843AYMT is typically available in a Thin QFN (TQFN) package. External components, including an inductor, input capacitor, output capacitor, and feedback resistors, are required for operation. The inductor value and capacitor sizes should be selected based on the desired output voltage, output current, and ripple requirements. The feedback resistors determine the output voltage, and their values should be chosen carefully to ensure accurate regulation. The datasheet provides detailed information on component selection and layout guidelines. Proper PCB layout is crucial for minimizing noise and maximizing efficiency. Ensure that the thermal characteristics of the package are considered, and use appropriate thermal management techniques if necessary.

Using the MIC2843AYMT synchronous boost regulator helps enhance battery life and overall efficiency for portable devices. Its application guarantees consistent power delivery and operation, mitigating any instability when powering various applications.
