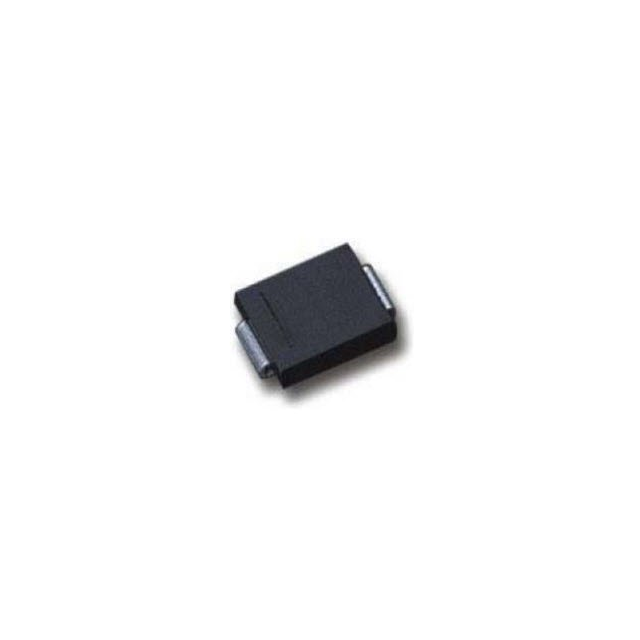

SMDJ78 Real Image
Same model may have multiple batches, images only for reference.

SMDJ78

Part No SMDJ78
Manufacturer Meritek
Catalog TVS - Diodes
Datasheet
SMDJ78 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection>TVS - Diodes
Mfr Meritek
Series SMDJ
Package Tape & Reel (TR)
Type Zener
Unidirectional Channels 1
Voltage - Reverse Standoff (Typ) 78V
Voltage - Breakdown (Min) 86.7V
Voltage - Clamping (Max) @ Ipp 139V
Current - Peak Pulse (10/1000µs) 21.58A
Power - Peak Pulse 3000W (3kW)
Applications General Purpose
Temperature Range - Operating -55°C ~ 150°C
Mounting SMD (SMT)
Package / Case DO-214AB (SMC)
Other Names 2997-SMDJ78TR
Standard Package 20
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.10.0080
Win Source Part Number 1299882-SMDJ78
Ultra Librarian 3D Model Ultra Librarian SMDJ78 CAD Model

Description

The Meritek SMDJ78 is a TVS diode that belongs to the SMDJ series.

  • Type: Unidirectional zener diode
  • Application: General-purpose
  • Reverse Standoff Voltage: 78V
  • Breakdown Voltage: 86.7V
  • Clamping Voltage: 139V @ a peak pulse power of 3kW
  • Package: DO-214AB (SMC)
  • Packaging: Tape and reel
  • Current Rating: 21.58A
  • Operating Temperature: -55°C to 150°C
  • Manufacturer: Meritek
