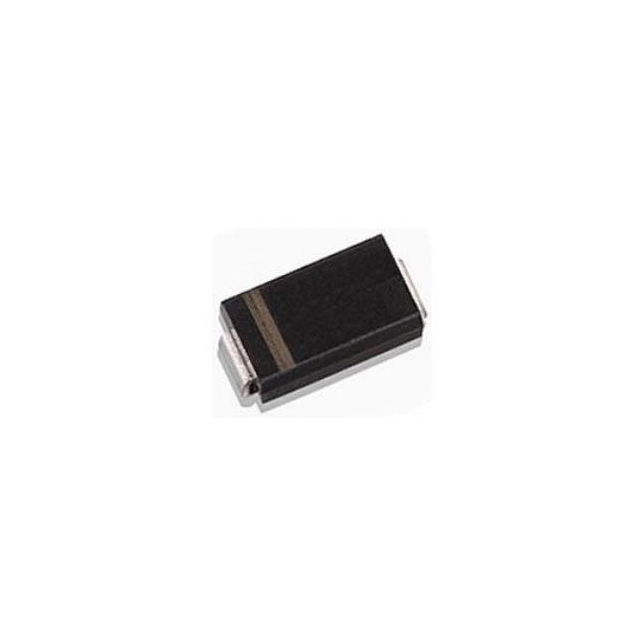

SMAJ180 Real Image
Same model may have multiple batches, images only for reference.

SMAJ180

Part No SMAJ180
Manufacturer Meritek
Catalog TVS - Diodes
Datasheet
SMAJ180 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection>TVS - Diodes
Mfr Meritek
Series SMAJ
Package Tape & Reel (TR)
Type Zener
Unidirectional Channels 1
Voltage - Reverse Standoff (Typ) 180V
Voltage - Breakdown (Min) 200.16V
Voltage - Clamping (Max) @ Ipp 322.2V
Current - Peak Pulse (10/1000µs) 1.24A
Power - Peak Pulse 400W
Applications General Purpose
Temperature Range - Operating -55°C ~ 150°C
Mounting SMD (SMT)
Package / Case DO-214AC (SMA)
Other Names 2997-SMAJ180TR
Standard Package 20
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.10.0080
Win Source Part Number 1299963-SMAJ180
Ultra Librarian 3D Model Ultra Librarian SMAJ180 CAD Model

Description

The Meritek SMAJ180 is a unidirectional zener diode that is used for general-purpose applications.

  • Voltage Rating: 180V
  • Breakdown Voltage: 200.16V
  • Clamping Voltage: 322.2V @ a peak pulse power of 400W
  • Package: DO-214AC (SMA)
  • Packaging: Tape and Reel
  • Temperature Range: -55°C ~ 150°C
