Same model may have multiple batches, images only for reference.

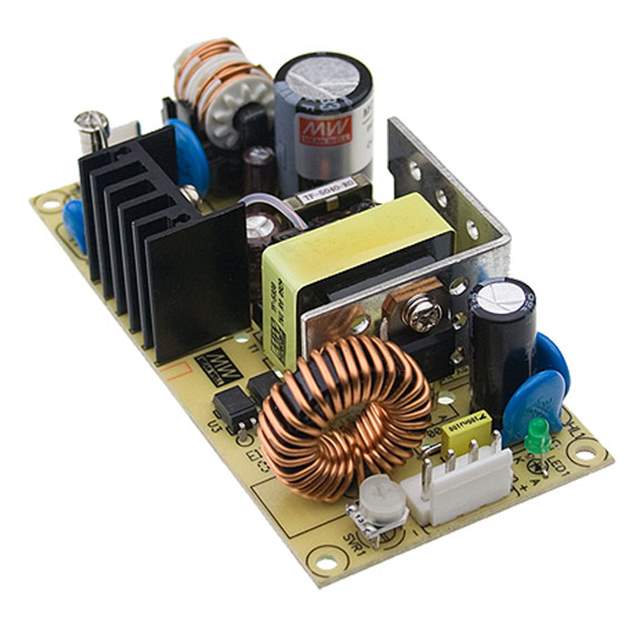

PSD-30B-12 Real Image
Same model may have multiple batches, images only for reference.

PSD-30B-12

Part No PSD-30B-12
Manufacturer Mean Well Enterprises Co., Ltd.
Catalog Power Supplies Board Mount DCDC Converters
Description DC/DC CONVERTER 12V 30W / Open Frame DC DC Converter 1 Output 12V 2.5A 36V Input
Datasheet
PSD-30B-12 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - External/Internal (Off-Board)>DC DC Converters
Mfr MEAN WELL USA Inc.
Series PSD-30 (30W)
Package Box
Type Open Frame
Voltage - Input (Min) 18V
Voltage - Input (Max) 36V
Number of Outputs 1
Voltage - Output 1 12V
Current - Output (Max) 2.5A
Power (Watts) 30W
Voltage - Isolation 1.5 kV
Applications ITE (Commercial)
Efficiency 80%
Temperature Range - Operating -20°C ~ 60°C (With Derating)
Mounting Type Chassis Mount
Dimension 4.00" L x 2.00" W x 1.18" H (101.6mm x 50.8mm x 30.0mm)
Approval Agency CE
Base Product Number PSD-30
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.40.9580
Other Names PSD-30B-12-ND,1866-5417
Standard Package 72
Win Source Part Number 1086109-PSD-30B-12
Ultra Librarian 3D Model Ultra Librarian PSD-30B-12 CAD Model

Description

The MEAN WELL USA Inc. PSD-30B-12 is a 30W DC DC converter from the PSD-30 (30W) series.

  • Type: Open frame
  • Package: Box package
  • Applications: ITE (Commercial)
  • Standard Package: 72
  • Power: 30W
  • Efficiency: 80%
  • Voltage Isolation: 1.5 kV
  • Outputs: One
  • Maximum Current Output: 2.5A
  • Input Voltage: 18V to 36V
  • Output Voltage: 12V
  • Mounting Type: Chassis mount
  • Operating Temperature: -20°C to 60°C (With Derating)
  • Dimension: 4.00" L x 2.00" W x 1.18" H (101.6mm x 50.8mm x 30.0mm)
  • Alternative Parts: LS35-12, LS25-12, and ZPSA20-12PSD30B12
  • MSL Level: 1 (Unlimited)
  • REACH: Unaffected
  • HTSUS: 8504.40.9580
  • Other Names: PSD-30B-12-ND and 1866-5417
  • Base Product Number: PSD-30
  • Approvals: CE
