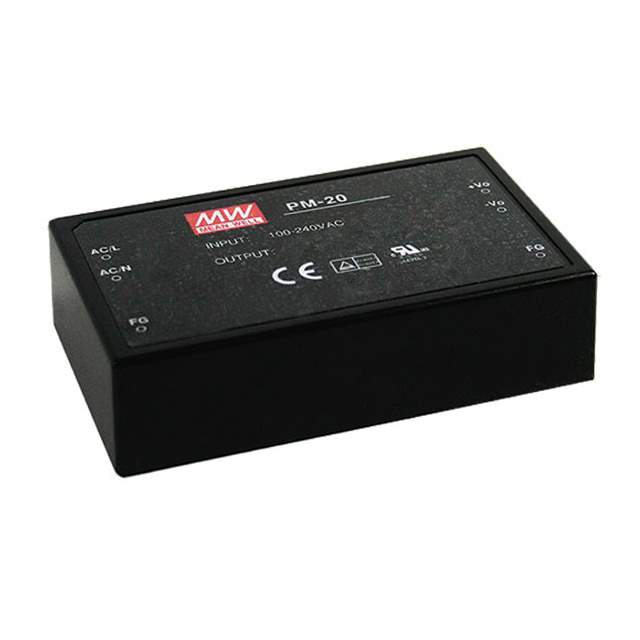

PM-20-12 Real Image
Same model may have multiple batches, images only for reference.

PM-20-12

Part No PM-20-12
Manufacturer Mean Well Enterprises Co., Ltd.
Catalog Board Mount AC DC Converters
Description AC/DC CONVERTER 12V 22W / 20W Output Switching Power Supply
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer MEAN WELL USA Inc.
Part Status Last Time Buy
Type Enclosed
Number of Outputs 1
Voltage - Input 85 ~ 264 VAC
Voltage - Output 1 12V
Current - Output (Maximum) 1.8A
Power (Watts) 22W
Applications Medical
Features DC Input Capable, Universal Input
Temperature Range - Operating -20°C ~ 60°C (With Derating)
Efficiency 81%
Mounting Style Through Hole
Manufacturer Package 6-DIP Module
Dimension 3.70" L x 2.20" W x 0.89" H (94.0mm x 56.0mm x 22.7mm)
Line Regulation ±0.5%
Load Regulation ±1%
Approvals CB, CE, cURus, TUV
Manufacturer Pack Quantity 1
MSL Level 1 (Unlimited)
Popularity Medium
Supply and Demand Status Limited
Win Source Part Number 810786-PM-20-12
Ultra Librarian 3D Model Ultra Librarian PM-20-12 CAD Model

Description

This MEAN WELL USA Inc. power supply is an enclosed type with a Win Source Part Number of 810786-PM-20-12.

  • Input Type: DC, Universal
  • Approvals: CB, CE, cURus, TUV
  • Applications: Medical
  • Power Output: 22W
  • Voltage Input: 85 ~ 264 VAC
  • Output Type: Single
  • Output Voltage: 12V
  • Efficiency: 81%
  • Line Regulation: ±0.5%
  • Load Regulation: ±1%
  • Operating Temperature Range: -20°C ~ 60°C (With Derating)
  • Dimension: 3.70" L x 2.20" W x 0.89" H (94.0mm x 56.0mm x 22.7mm)
  • Manufacturer Package: 6-DIP Module
  • Current Output: 1
  • Manufacturer Pack Quantity: 1
  • MSL Level: 1 (Unlimited)
