Same model may have multiple batches, images only for reference.

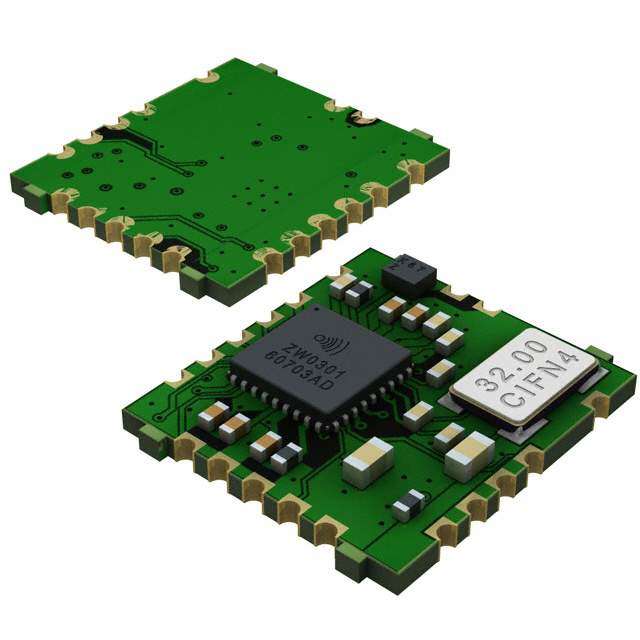

ZM3102AU-CME1 Real Image
Same model may have multiple batches, images only for reference.

ZM3102AU-CME1

Part No ZM3102AU-CME1
Manufacturer Sigma Designs Inc.
Catalog RF Transceiver Modules
Description RF TXRX MODULE ISM
Datasheet
ZM3102AU-CME1 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories RF/IF and RFID
Manufacturer Sigma Designs Inc.
Packaging Reel - TR
RF Family/Standard General ISM
Protocol Z-Wave
Modulation FSK
Frequency 908MHz
Data Rate 40kbps
Power - Output -2dBm
Sensitivity -102dBm
Serial Interfaces SPI, UART
Antenna Type Not Included
Memory Size 32kB Flash, 2kB SRAM
Supply Voltage - Operating 2.1 V to 3.6 V
Current - Receiving 23mA
Current - Transmitting 24mA to 36mA
Mounting SMD (SMT)
Temperature Range - Operating -15°C to 85°C
Dimension Module
Win Source Part Number 044129-ZM3102AU-CME1
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian ZM3102AU-CME1 CAD Model

Description

The Sigma Designs Inc. ZM3102AU-CME1 is a Z-Wave protocol integrated circuit (IC) that operates @ a frequency of 908MHz with a data rate of 40kbps.

  • Memory: The device has 32kB flash memory and 2kB SRAM.
  • Package: The ZM3102AU-CME1 comes in a module package and has a medium popularity rating of 71%.
  • Supply and Demand Status: The device has a limited supply and demand status and is ideal for RF/IF and RFID applications.
