Same model may have multiple batches, images only for reference.

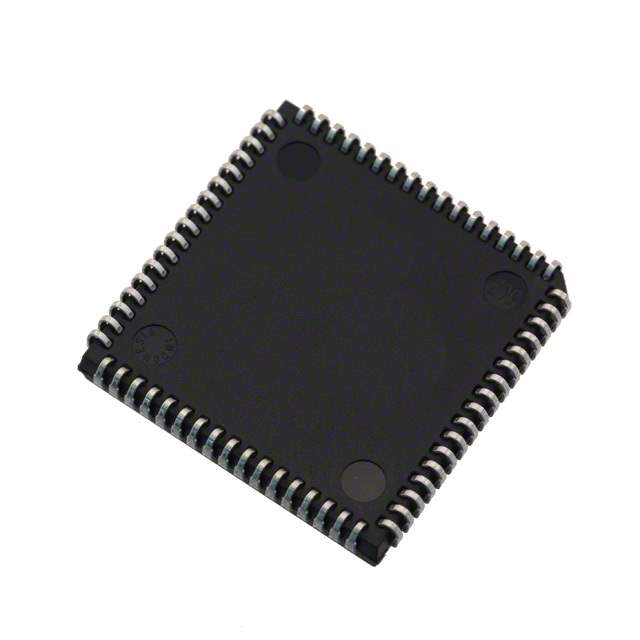

ST16C554DIJ68-F Real Image
Same model may have multiple batches, images only for reference.

ST16C554DIJ68-F

Part No ST16C554DIJ68-F
Manufacturer Exar Corporation
Catalog Interface - UARTs (Universal Asynchronous Receiver Transmitter)
Description IC UART FIFO 16B QUAD 68PLCC
Datasheet
ST16C554DIJ68-F Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits
Manufacturer Exar Corporation
Packaging Tube/Rail
Status Active
Features Internal Oscillator, Timer/Counter
Number of Channels 4, QUART
FIFO's 16 Byte
Protocol RS232
Data Rate (Max) 1.5Mbps
Supply Voltage - Operating 2.97 V to 5.5 V
With Auto Flow Control Yes
With False Start Bit Detection Yes
With Modem Control Yes
Mounting SMD (SMT)
Case / Package 68-PLCC (24.23x24.23)
Win Source Part Number 030963-ST16C554DIJ68-F
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian ST16C554DIJ68-F CAD Model

Description

The Exar Corporation 030963-ST16C554DIJ68-F is a high-performance UART IC that supports RS232 protocol.

  • Features: Internal oscillator and timer/counter
  • Package: 68-PLCC
  • Mounting: SMD (SMT)
  • Channels: Four
  • Maximum Data Rate: 1.5Mbps
  • FIFO: 16-byte
  • Features: Auto flow control and modem control.
  • Additional Feature: False start bit detection.
  • Operating Voltage: 2.97V to 5.5V
  • Popularity: High
  • Supply: Limited
