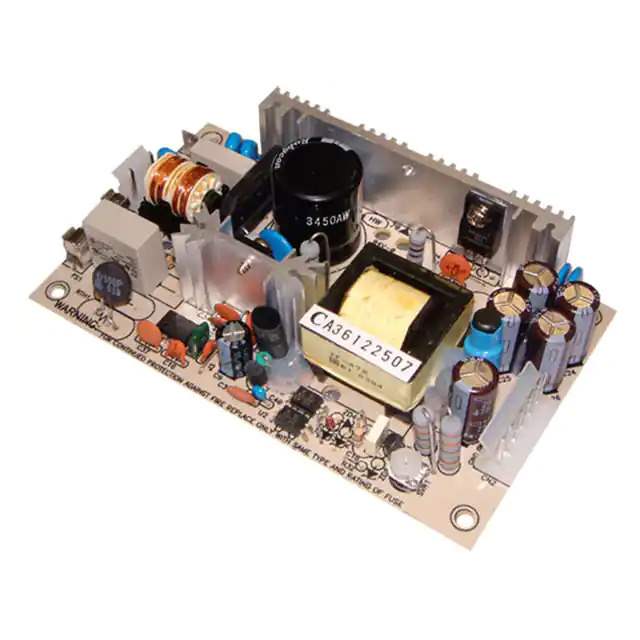

Same model may have multiple batches, images only for reference.

PD-45A

Name: PD-45A
Brand: Mean Well Enterprises Co., Ltd.
SKU: 847265
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	PD-45A
Manufacturer	Mean Well Enterprises Co., Ltd.
Catalog	External/Internal (Off - Board) AC DC Converters
Description	AC/DC CONVERTER 5V 12V 40W / Open Frame AC DC Converters 2 Output 5V 12V 90 ~ 264 VAC, 127 ~ 370 VDC Input
Datasheet	PD-45A Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Power Supplies - External/Internal (Off-Board) - AC DC Converters
Mfr	Mean Well Enterprises Co., Ltd.
Series	PD-45 (45W)
Package	Box
Product Status	Active
Type	Open Frame
Number of Outputs	2
Voltage - Input	90 ~ 264 VAC, 127 ~ 370 VDC
Voltage - Output 1	5V
Voltage - Output 2	12V
Current - Output 1	3.2 A
Current - Output 2	2 A
Power (Watts)	40W
Applications	ITE (Commercial)
Voltage - Isolation	3 kV
Efficiency	77%
Temperature Range - Operating	-10°C ~ 60°C (With Derating)
Features	Adjustable Output, Universal Input
Mounting Type	Chassis Mount
Size / Dimension	5.00" L x 2.99" W x 1.10" H (127.0mm x 76.0mm x 28.0mm)
Approval Agency	CB, CE, cURus, TUV
Minimum Load Required	Yes
Base Product Number	PD-45
Standard Package	72 pcs
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8504.40.9510
Win Source Part Number	847265-PD-45A
Ultra Librarian 3D Model	Ultra Librarian PD-45A CAD Model

Alternative Products

Description

The PD-45 (45W) power supply is a high-performance solution for various applications.

Output: Adjustable
Input: Universal
Type: Open Frame
Size: 5.00" L x 2.99" W x 1.10" H (127.0mm x 76.0mm x 28.0mm)
Application: ITE (Commercial)
Power Rating: 40W
Input Voltage: 90 ~ 264 VAC, 127 ~ 370 VDC
Voltage Isolation: 3 kV
Efficiency: 77%
Output 1 Voltage: 5V
Output 1 Current: 3.2A
Output 2 Voltage: 12V
Output 2 Current: 2A
Minimum Load: Required
Mounting Type: Chassis Mount
Operating Temperature: -10°C ~ 60°C (With Derating)
Approvals: CB, CE, cURus, TUV
