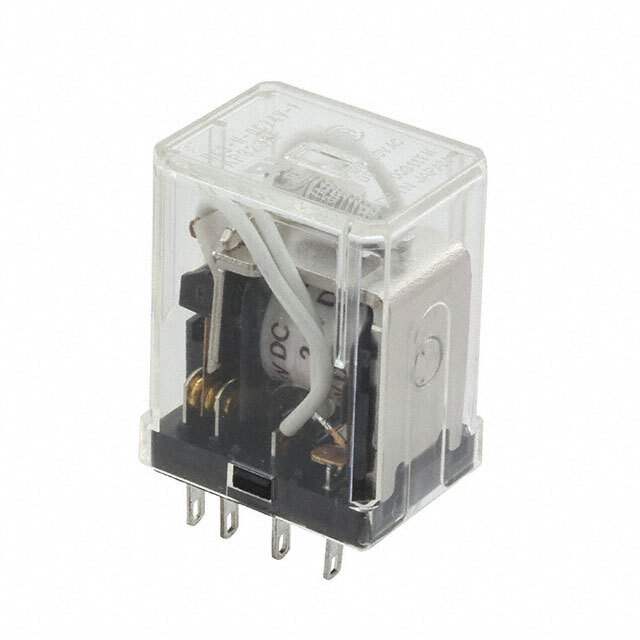

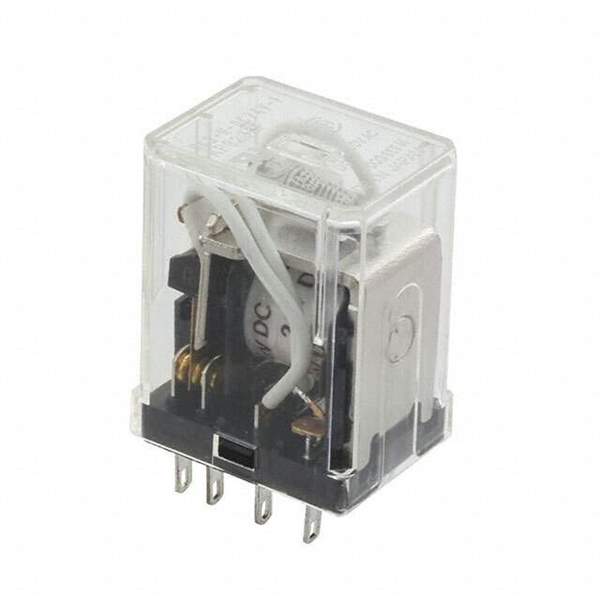

HC3-H-DC24V-F Real Image
Same model may have multiple batches, images only for reference.

HC3-H-DC24V-F

Part No HC3-H-DC24V-F
Manufacturer Panasonic
Catalog Power Relays, Over 2 Amps
Description RELAY GEN PURPOSE 3PDT 7A 24V
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Relays
Manufacturer Panasonic Electric Works
Packaging Bulk
Status Active
Relay Type General Purpose
Coil Type Non Latching
Coil Current 37mA
Coil Voltage 24VDC
Contact Form 3PDT (3 Form C)
Contact Rating (Current) 7A
Switching Voltage 250VAC - Max
Turn On Voltage (Max) 19.2 VDC
Turn Off Voltage (Min) 2.4 VDC
Operate Time 20ms
Release Time 20ms
Mounting Socketable
Termination Style Plug In
Coil Power 900 mW
Coil Resistance 650 Ohms
Temperature Range - Operating -50°C to 70°C
Win Source Part Number 001510-HC3-H-DC24V-F
Popularity Medium
Supply and Demand Status Limited
Quantity per package 20
Ultra Librarian 3D Model Ultra Librarian HC3-H-DC24V-F CAD Model

Description

The supply and demand status is limited. This product is manufactured by Panasonic Electric Works and has a Win Source Part Number of 001510-HC3-H-DC24V-F.

  • Manufacturer: Panasonic Electric Works
  • Win Source Part Number: 001510-HC3-H-DC24V-F
  • Product Type: Relay
  • Contact Form: 3PDT (3 Form C)
  • Maximum Switching Voltage: 250VAC
  • Current: 7A
  • Coil Voltage: 24VDC
  • Coil Resistance: 650 Ohms
  • Contact Rating Current: 7A
  • Operating Temperature: -50°C to 70°C
  • Package: Bulk of 20
