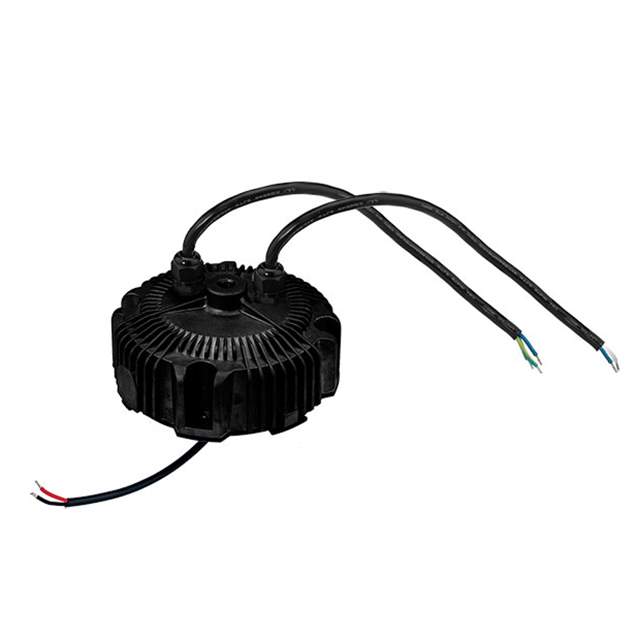

The HBG-160-60B is a power supply external/internal LED driver from the HBG-160 series, manufactured by MEAN WELL USA Inc.

• Type: constant current, voltage
• Termination Style: wire leads
• Features: OCP, OTP, OVP, and SCP
• Package: box
• Standard Package: 8
• Ratings: IP67
• Power: 156 W
• Voltage Output: 36 ~ 60V
• Topology: AC DC converter
• Voltage Isolation: 3.75 kV
• Number of Outputs: 1
• Current Output (max): 2.6A
• Voltage Input: 90VAC to 305VAC
• Dimming Options: analog and PWM
• Efficiency: 93.5%
• Mounting Type: chassis mount
• Temperature Range: -40°C to 85°C
• Dimension: 5.97" Dia x 2.62" H (151.7mm x 66.5mm)
• Alternative Parts (cross-reference): HBG-160-60BHBG-160-60-B
• Approvals: CB, CCC, CE, cURus, and TUV
