Same model may have multiple batches, images only for reference.

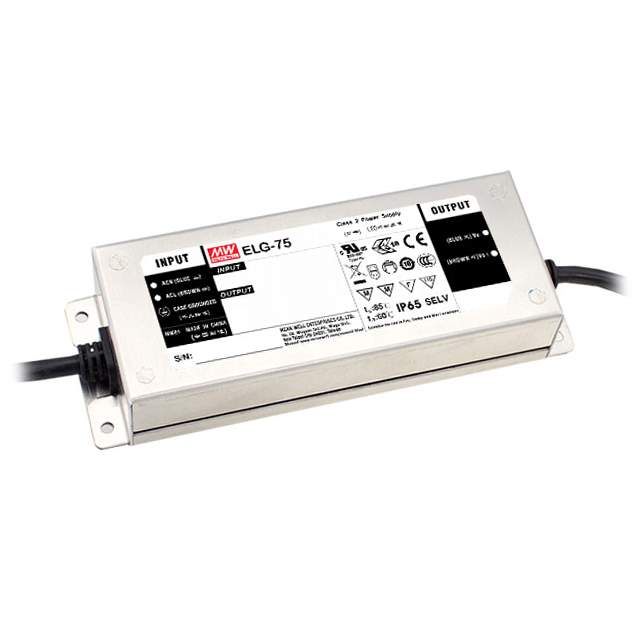

ELG-75-12A Real Image
Same model may have multiple batches, images only for reference.

ELG-75-12A

Part No ELG-75-12A
Manufacturer Mean Well Enterprises Co., Ltd.
Catalog External/Internal (Off - Board) LED Drivers
Description LED DRVR CC/CV AC/DC 12V 5A / 5A 12V Constant Current, Voltage LED Driver AC DC Converter Topology 1 Output
Datasheet
ELG-75-12A Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - External/Internal (Off-Board)>LED Drivers
Mfr MEAN WELL USA Inc.
Series ELG-75 (75W)
Package Box
Type Constant Current, Voltage
Topology AC DC Converter
Number of Outputs 1
Voltage - Input (Min) 100VAC
Voltage - Input (Max) 305VAC
Voltage - Output 12V
Current - Output (Max) 5A
Power (Watts) 60 W
Voltage - Isolation 3.75 kV
Dimming Analog
Features OCP, OTP, OVP, SCP
Ratings IP65
Temperature Range - Operating -40°C ~ 85°C
Efficiency 85%
Termination Style Wire Leads
Dimension 6.50" L x 2.48" W x 1.40" H (165.0mm x 63.0mm x 35.5mm)
Approval Agency CB, CCC, CE, cURus, TUV
Mounting Type Chassis Mount
Base Product Number ELG-75
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.40.9520
Other Names 1866-1559,ELG-75-12A-ND
Standard Package 16
Win Source Part Number 1060375-ELG-75-12A
Ultra Librarian 3D Model Ultra Librarian ELG-75-12A CAD Model

Description

The MEAN WELL USA Inc. LED Driver is designed for use in various electronic applications.

  • Power Output: 60W
  • Output Voltage: 12V
  • Win Source Part Number: 1060375-ELG-75-12A
  • Features: OCP, OTP, OVP, and SCP
  • IP Rating: IP65
  • Temperature Range: -40°C to 85°C
