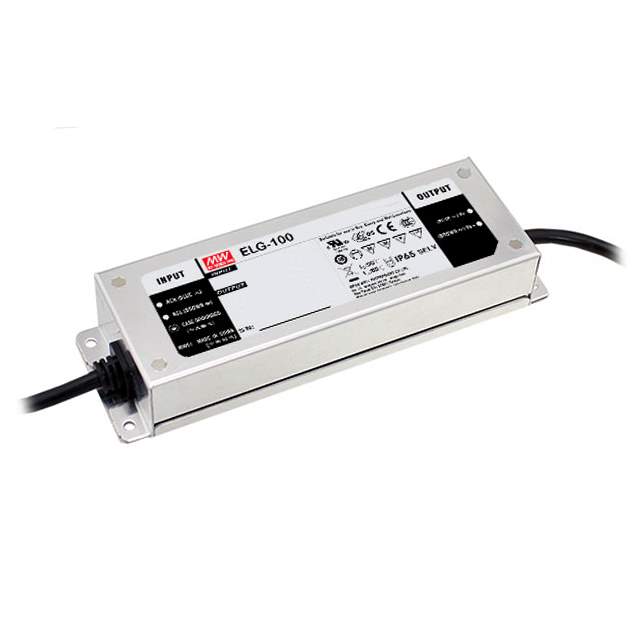

ELG-100-42A Real Image
Same model may have multiple batches, images only for reference.

ELG-100-42A

Part No ELG-100-42A
Manufacturer Mean Well Enterprises Co., Ltd.
Catalog External/Internal (Off - Board) LED Drivers
Description LED DRVR CC/CV AC/DC 21-42V / 2.28A 21 ~ 42V Constant Current, Voltage LED Driver AC DC Converter Topology 1 Output
Datasheet
ELG-100-42A Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - External/Internal (Off-Board)>LED Drivers
Mfr MEAN WELL USA Inc.
Series ELG-100 (100W)
Package Box
Type Constant Current, Voltage
Topology AC DC Converter
Number of Outputs 1
Voltage - Input (Min) 100VAC
Voltage - Input (Max) 305VAC
Voltage - Output 21 ~ 42V
Current - Output (Max) 2.28A
Power (Watts) 96 W
Voltage - Isolation 3.75 kV
Features OCP, OTP, OVP, SCP
Ratings IP65
Temperature Range - Operating -40°C ~ 90°C
Efficiency 90%
Termination Style Wire Leads
Dimension 6.89" L x 2.48" W x 1.40" H (175.0mm x 63.0mm x 35.5mm)
Approval Agency CB, CCC, CE, cURus, ENEC, RCM
Mounting Type Chassis Mount
Base Product Number ELG-100
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.40.9520
Other Names 1866-1454,ELG-100-42A-ND
Standard Package 16
Win Source Part Number 1034104-ELG-100-42A
Ultra Librarian 3D Model Ultra Librarian ELG-100-42A CAD Model

Description

The MEAN WELL USA Inc. ELG-100-42A is a constant current, voltage type power supply with a wire lead termination style.

  • Output Voltage Range: 21 ~ 42V
  • Power: 96 W
  • Voltage Input Range: 100VAC to 305VAC
  • Efficiency: 90%
  • Mounting Type: Chassis Mount
  • Operating Temperature Range: -40°C ~ 90°C
  • Win Source Part Number: 1034104
  • Category: Power Supplies - External/Internal (Off-Board) > LED Drivers
  • IP Rating: IP65
  • Features: OCP, OTP, OVP, and SCP
  • Alternative Parts: Not Provided
