Same model may have multiple batches, images only for reference.

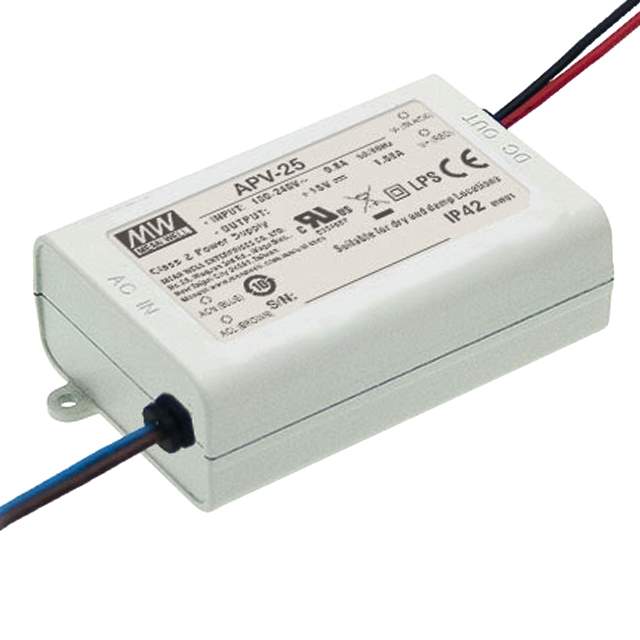

APV-25-15 Real Image
Same model may have multiple batches, images only for reference.

APV-25-15

Part No APV-25-15
Manufacturer Mean Well Enterprises Co., Ltd.
Catalog External/Internal (Off - Board) LED Drivers
Description LED DRIVER CV AC/DC 15V 1.68A / 1.68A 15V Constant Voltage LED Driver AC DC Converter Topology 1 Output
Datasheet
APV-25-15 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - External/Internal (Off-Board)>LED Drivers
Mfr MEAN WELL USA Inc.
Series APV-25 (25W)
Package Box
Type Constant Voltage
Topology AC DC Converter
Number of Outputs 1
Voltage - Input (Min) 90VAC
Voltage - Input (Max) 264VAC
Voltage - Output 15V
Current - Output (Max) 1.68A
Power (Watts) 25 W
Voltage - Isolation 3 kV
Features OCP, OVP, SCP
Ratings IP42
Temperature Range - Operating -30°C ~ 70°C
Efficiency 83%
Termination Style Wire Leads
Dimension 3.31" L x 2.24" W x 1.16" H (84.0mm x 57.0mm x 29.5mm)
Approval Agency CE, cURus
Mounting Type Chassis Mount
Base Product Number APV-25
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.40.9510
Other Names 1866-1155,APV-25-15-ND
Standard Package 72
Win Source Part Number 1104036-APV-25-15
Ultra Librarian 3D Model Ultra Librarian APV-25-15 CAD Model

Description

The MEAN WELL USA Inc. APV-25-15-ND is a 25W constant voltage LED driver with OCP, OVP, and SCP features.

  • Termination Style: Wire Leads
  • IP Rating: IP42
  • AC DC Converter: Yes
  • Voltage Isolation: 3 kV
  • Maximum Output Current: 1.68A
  • Input Voltage Range: 90VAC to 264VAC
  • Efficiency Rate: 83%
  • Mounting Type: Chassis Mount
  • Temperature Range: -30°C to 70°C
  • Dimension: 3.31" L x 2.24" W x 1.16" H (84.0mm x 57.0mm x 29.5mm)
  • Approvals: CE and cURus
