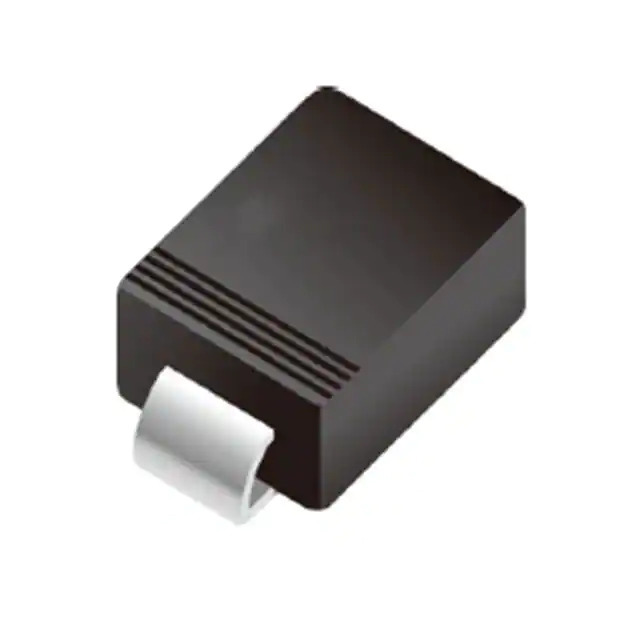

Part No SS5200B
Manufacturer MDD
Catalog Diodes, Rectifiers - Single
Description DIODE SCHOTTKY 200V 5A SMB
Datasheet
SS5200B Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products - Diodes - Rectifiers - Single Diodes
Mfr MDD
Series SMB
Package Tape & Reel
Product Status Active
Technology Schottky
Voltage - DC Reverse (Vr) (Max) 200 V
Current - Average Rectified (Io) 5A
Voltage - Forward (Vf) (Max) @ If 850 mV @ 5 A
Speed Fast Recovery =< 500ns, > 200mA (Io)
Current - Reverse Leakage @ Vr 300 µA @ 200 V
Capacitance @ Vr, F 300pF @ 4V, 1MHz
Mounting Type Surface Mount
Package / Case DO-214AA, SMB
Supplier Device Package SMB
Operating Temperature - Junction -50°C ~ 150°C
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.39.0001
Win Source Part Number 1367269-SS5200B
Ultra Librarian 3D Model Ultra Librarian SS5200B CAD Model

Description

The SS5200B is a Schottky diode from MDD's SMB series manufactured by MDD.

  • Type: Surface mount diode
  • Package/Case: DO-214AA, SMB
  • Maximum DC Reverse Voltage: 200V
  • Average Rectified Current: 5A
  • Forward Voltage: 850mV @ a current of 5A
  • Type: Fast recovery diode
  • Recovery Time: Less than 500ns
  • Reverse Leakage Current: 300µA @ a reverse voltage of 200V
  • Capacitance: 300pF @ 4V and 1MHz
  • Operating Temperature Range: -50°C to 150°C
  • Suitability: Suitable for use in applications such as rectification, power supplies, and battery chargers
