Same model may have multiple batches, images only for reference.

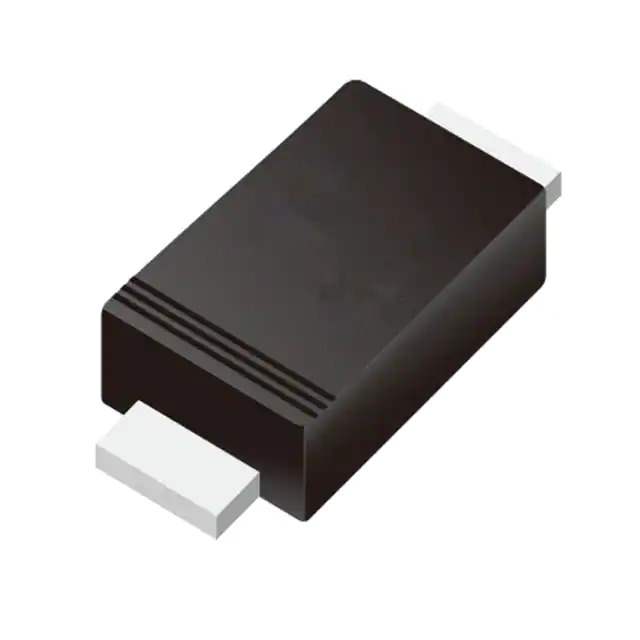

SS16F Real Image
Same model may have multiple batches, images only for reference.

SS16F

Part No SS16F
Manufacturer MDD
Catalog Diodes, Rectifiers - Single
Description DIODE SCHOTTKY 60V 1A SMAF
Datasheet
SS16F Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products - Diodes - Rectifiers - Single Diodes
Mfr MDD
Series SMAF
Package Tape & Reel
Product Status Active
Technology Schottky
Voltage - DC Reverse (Vr) (Max) 60 V
Current - Average Rectified (Io) 1A
Speed Fast Recovery =< 500ns, > 200mA (Io)
Current - Reverse Leakage @ Vr 300 µA @ 60 V
Capacitance @ Vr, F 80pF @ 4V, 1MHz
Mounting Type Surface Mount
Package / Case DO-221AC, SMA Flat Leads
Supplier Device Package SMAF
Operating Temperature - Junction -55°C ~ 150°C
Standard Package 6,000 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Affected
ECCN EAR99
HTSUS 8541.10.0080
Win Source Part Number 676258-SS16F
Ultra Librarian 3D Model Ultra Librarian SS16F CAD Model

Description

The MDD 676258-SS16F Diode Rectifier is a high-quality diode designed for various applications.

  • Series: SMAF
  • Package: Tape and reel
  • Standard Package: 6,000 pieces
  • Voltage Rating: 60V
  • Average Rectified Current: 1A
  • Reverse Leakage Current: 300μA @ 60V
  • Capacitance: 80pF @ 4V and 1MHz
  • Operating Temperature: -55°C to 150°C
  • Mounting: Surface mountable
  • Package/Case: DO-221AC, SMA Flat Leads
