Overview of VND5E050MJTR-E

The VND5E050MJTR-E is a cutting-edge automotive-grade double channel high-side driver manufactured by STMicroelectronics, a leader in the semiconductor industry. This robust device is designed to drive resistive, inductive, and capacitive loads, offering a reliable solution for applications requiring high-side switch functionality.

Key Features

• High Load Capability: The device is capable of handling high current loads, making it suitable for a variety of demanding automotive applications.
• Built-in Protection: It includes overcurrent, overtemperature, and electrical overstress protections to ensure the longevity and reliability of the device under harsh operating conditions.
• Advanced Diagnostics: VND5E050MJTR-E provides diagnostic feedback that can be used to detect open load in OFF state, short to Vcc, short to GND, and overtemperature conditions.
• CMOS Compatible Inputs: The input logic is compatible with standard CMOS or TTL levels, which simplifies the interface with control electronics.

Application Areas

The VND5E050MJTR-E is particularly suited for automotive environments where high reliability and efficiency are paramount. It is commonly used in:

• Automotive lighting systems such as headlights, taillights, and interior lights
• Engine management systems
• Body control modules
• Automotive power distribution systems

Technical Specifications

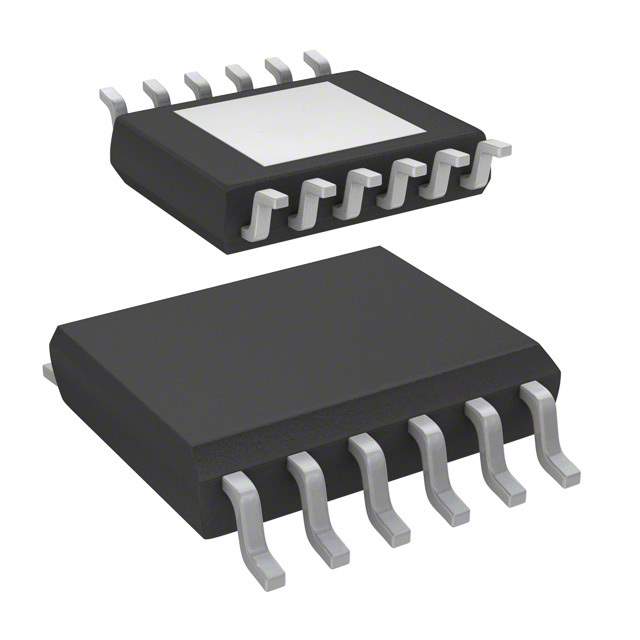

• Package: The device is offered in a PowerSSO-16 package which is designed for efficient thermal dissipation and space-saving on the PCB.
• Load Voltage Range: It operates over a wide load voltage range, accommodating various automotive electrical system requirements.
• Temperature Range: The VND5E050MJTR-E operates within a temperature range suitable for automotive environments, ensuring performance under extreme conditions.

In summary, the VND5E050MJTR-E from STMicroelectronics represents a reliable, high-performance solution for driving high-side loads in automotive applications. With its robust protection features, advanced diagnostics, and compatibility with standard control logic levels, it stands out as an ideal choice for modern vehicle electronics.
