Same model may have multiple batches, images only for reference.

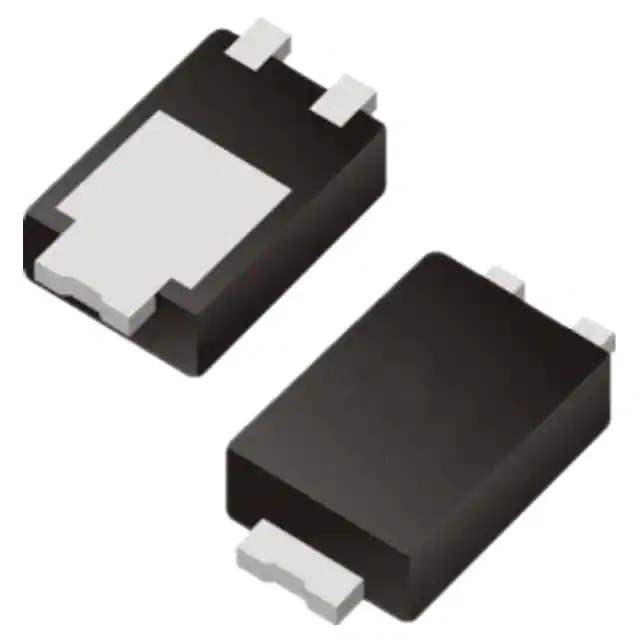

SL1045 Real Image
Same model may have multiple batches, images only for reference.

SL1045

Part No SL1045
Manufacturer MDD
Catalog Diodes, Rectifiers - Single
Description DIODE SCHOTTKY 45V 10A
Datasheet
SL1045 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products - Diodes - Rectifiers - Single Diodes
Mfr MDD
Package Tape & Reel
Product Status Active
Technology Schottky
Voltage - DC Reverse (Vr) (Max) 45 V
Current - Average Rectified (Io) 10A
Voltage - Forward (Vf) (Max) @ If 450 mV @ 10 A
Speed Fast Recovery =< 500ns, > 200mA (Io)
Current - Reverse Leakage @ Vr 300 µA @ 45 V
Mounting Type Surface Mount
Standard Package 6,000 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.39.0001
Win Source Part Number 667896-SL1045
Ultra Librarian 3D Model Ultra Librarian SL1045 CAD Model

Description

The SL1045 is a fast recovery Schottky diode suitable for rectification and high-speed switching applications. It comes in a tape & reel package, with a standard package of 6,000 pcs.

  • Maximum Reverse Voltage: With a maximum reverse voltage of 45V, this diode has an average rectified current of 10A and a forward voltage of 450mV @ 10A.
  • Reverse Leakage Current: The SL1045 has a low reverse leakage current of 300μA @ 45V.
  • Mounting & Package: It is surface mountable and belongs to the TO-236-3 package.
  • Status & Manufacturer: This diode is an active product manufactured by MDD.
