Same model may have multiple batches, images only for reference.

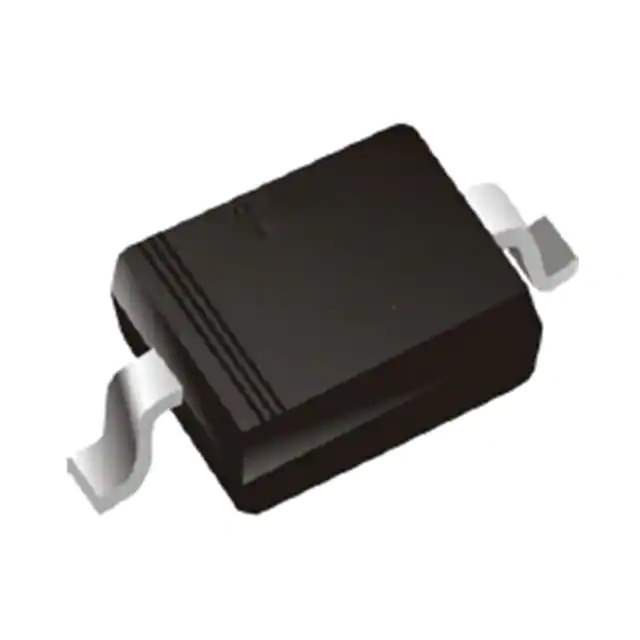

GBLC12C Real Image
Same model may have multiple batches, images only for reference.

GBLC12C

Part No GBLC12C
Manufacturer MDD
Catalog TVS - Diodes
Description TVS DIODE 12VWM 19VC SOD323
Datasheet
GBLC12C Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection - Transient Voltage Suppressors (TVS) - TVS Diodes
Mfr MDD
Series SOD-323
Package Tape & Reel
Product Status Active
Type Zener
Bidirectional Channels 1
Voltage - Reverse Standoff (Typ) 12V (Max)
Voltage - Breakdown (Min) 13.3V
Current - Peak Pulse (10/1000µs) 1A (8/20µs)
Power - Peak Pulse 300W
Power Line Protection Yes
Applications General Purpose
Capacitance @ Frequency 0.8pF @ 1MHz
Temperature Range - Operating -55°C ~ 150°C (TJ)
Mounting Type Surface Mount
Package / Case SOD-323
Supplier Device Package SOD-323
Standard Package 6,000 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.10.0080
Win Source Part Number 135957-GBLC12C
Ultra Librarian 3D Model Ultra Librarian GBLC12C CAD Model

Description

The 135957-GBLC12C is a Zener type TVS diode designed for circuit protection against transient voltage surges. It is a bidirectional diode with a reverse standoff voltage of 12V and a breakdown voltage of 13.3V. With a peak pulse power of 300W, it provides effective protection for general-purpose applications.

  • Reverse Standoff Voltage: 12V
  • Breakdown Voltage: 13.3V
  • Peak Pulse Power: 300W
  • Capacitance: 0.8pF @ 1MHz
  • Peak Pulse Current: 1A
  • Package: SOD-323
  • Operating Temperature: -55°C to 150°C
