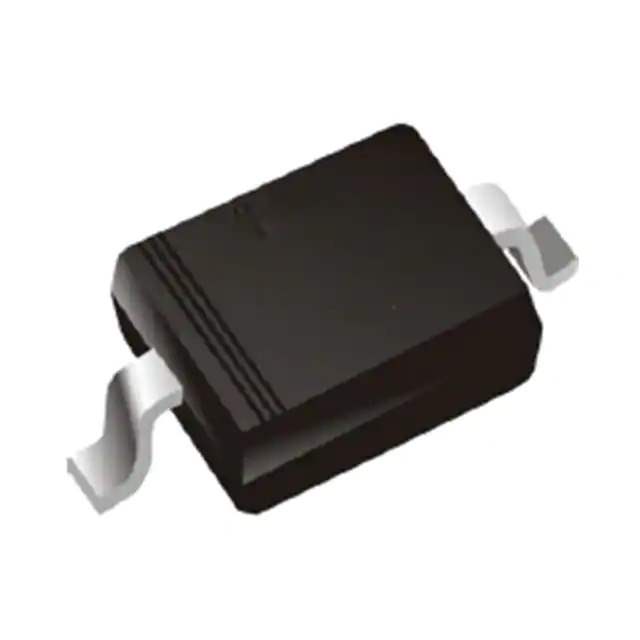

GBLC08C Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Circuit Protection - Transient Voltage Suppressors (TVS) - TVS Diodes
Mfr MDD
Series SOD-323
Package Tape & Reel
Product Status Active
Type Zener
Bidirectional Channels 1
Voltage - Reverse Standoff (Typ) 8V (Max)
Voltage - Breakdown (Min) 8.5V
Current - Peak Pulse (10/1000µs) 1A (8/20µs)
Power - Peak Pulse 300W
Power Line Protection Yes
Applications General Purpose
Capacitance @ Frequency 0.8pF @ 1MHz
Temperature Range - Operating -55°C ~ 150°C (TJ)
Mounting Type Surface Mount
Package / Case SOD-323
Supplier Device Package SOD-323
Standard Package 6,000 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.10.0080
Win Source Part Number 135954-GBLC08C
Ultra Librarian 3D Model Ultra Librarian GBLC08C CAD Model

Description

The 135954-GBLC08C is a Zener-type TVS diode designed for general-purpose circuit protection against transient voltage spikes.

  • Package: SOD-323
  • Mounting: Surface Mount (Tape and Reel)
  • Reverse Standoff Voltage: 8V
  • Breakdown Voltage: 8.5V
  • Peak Pulse Power: 300W
  • Channels: Bidirectional
  • Capacitance: 0.8pF @ 1MHz
  • Peak Pulse Current: 1A (8/20μs)
  • Status: Active
  • Application: General-Purpose Circuit Protection
