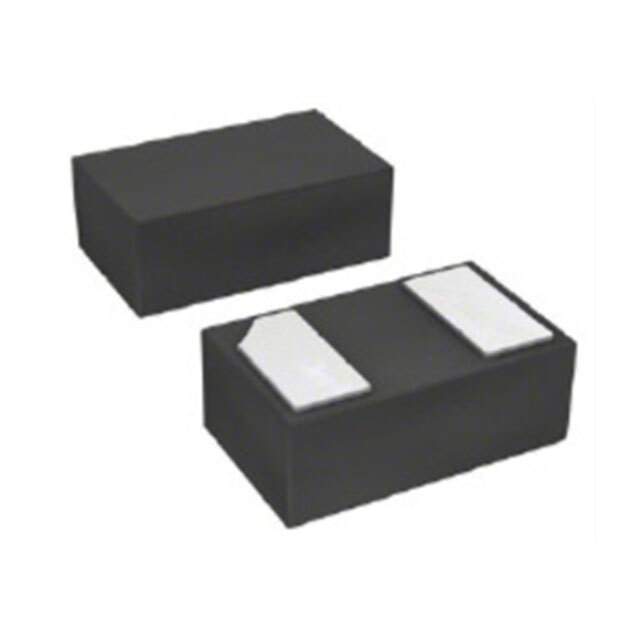

ESD8D12V Real Image
Same model may have multiple batches, images only for reference.

ESD8D12V

Part No ESD8D12V
Manufacturer MDD
Catalog TVS - Diodes
Description TVS DIODE 12VWM 50VC DFN1006 / Clamp 1A (8/20µs) Ipp Tvs Diode Surface Mount DFN1006
Datasheet
ESD8D12V Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection>TVS - Diodes
Mfr MDD
Series DFN1006
Package Tape & Reel (TR)
Type Zener
Unidirectional Channels 1
Voltage - Reverse Standoff (Typ) 12V (Max)
Voltage - Breakdown (Min) 13.3V
Current - Peak Pulse (10/1000µs) 1A (8/20µs)
Power - Peak Pulse 104W
Power Line Protection Yes
Applications General Purpose
Capacitance @ Frequency 45pF @ 1MHz
Temperature Range - Operating -55°C ~ 125°C (TJ)
Mounting SMD (SMT)
Package / Case DFN1006
Supplier Device Package DFN1006
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.10.0080
Other Names DFN1006D12VSYD,3372-ESD8D12VTR
Standard Package 10,000
Win Source Part Number 1057923-ESD8D12V
Ultra Librarian 3D Model Ultra Librarian ESD8D12V CAD Model

Description

The ESD8D12V is a TVS diode that is designed to protect electronic circuits from voltage spikes.

  • Type: Zener type diode
  • Reverse Standoff Voltage: 12V
  • Breakdown Voltage: 13.3V
  • Peak Pulse Power: 104W
  • Capacitance: 45pF @ 1MHz
  • Package: DFN1006 package
  • Mounting: SMD (SMT) technology
  • Temperature Range: -55°C to 125°C
  • Manufacturer: MDD
