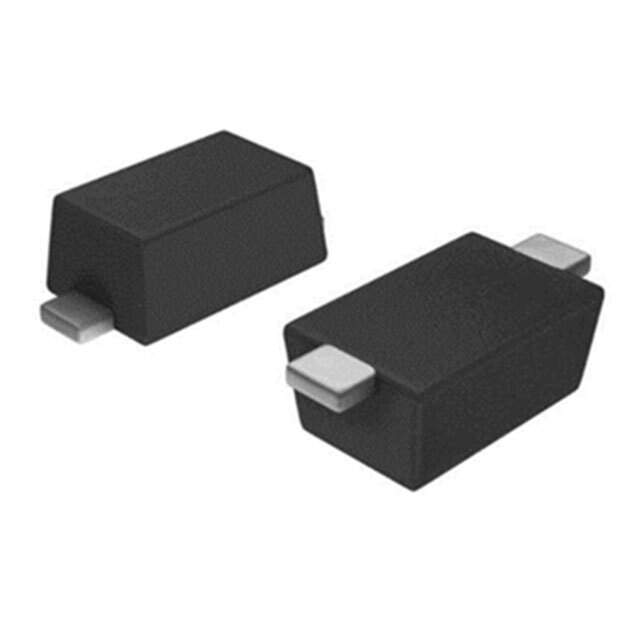

ESD5Z7V0 Real Image
Same model may have multiple batches, images only for reference.

ESD5Z7V0

Part No ESD5Z7V0
Manufacturer MDD
Catalog TVS - Diodes
Description TVS DIODE 7VWM 13.5VC SOD523  /  Clamp 5A (8/20µs) Ipp Tvs Diode Surface Mount SOD-523
Datasheet
ESD5Z7V0 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection>TVS - Diodes
Mfr MDD
Series SOD-523
Package Tape & Reel (TR)
Type Zener
Unidirectional Channels 1
Voltage - Reverse Standoff (Typ) 7V
Voltage - Breakdown (Min) 7.5V
Current - Peak Pulse (10/1000µs) 5A (8/20µs)
Power - Peak Pulse 200W
Power Line Protection Yes
Applications General Purpose
Capacitance @ Frequency 65pF @ 1MHz
Temperature Range - Operating -55°C ~ 150°C (TJ)
Mounting SMD (SMT)
Package / Case SOD-523
Supplier Device Package SOD-523
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.10.0080
Other Names SOD5235Z7V0SZH,3372-ESD5Z7V0TR
Standard Package 12,000
Win Source Part Number 1057915-ESD5Z7V0
Ultra Librarian 3D Model Ultra Librarian ESD5Z7V0 CAD Model

Description

The ESD5Z7V0 from MDD is a circuit protection device designed for use in electronic circuits.

  • Type: unidirectional Zener diode
  • Voltage Rating: 7V
  • Breakdown Voltage: 7.5V
  • Peak Pulse Power: 200W
  • Capacitance: 65pF @ 1MHz
  • Peak Pulse Current: 5A (8/20µs)
  • Package: SOD-523 package
  • Operating Temperature: -55°C to 150°C (TJ)
