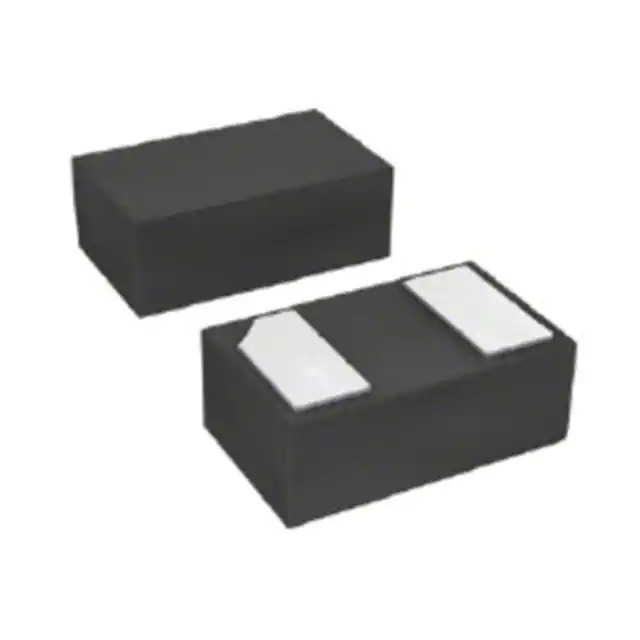

ESD0801PB MDD
Same model may have multiple batches, images only for reference.

ESD0801PB

Part No ESD0801PB
Manufacturer MDD
Catalog TVS - Diodes
Description TVS DIODE 5VWM 9.5VC DFN1006 / Clamp 1A (8/20µs) Ipp Tvs Diode Surface Mount DFN1006
Datasheet
ESD0801PB Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection - Transient Voltage Suppressors (TVS) - TVS Diodes
Mfr MDD
Series DFN1006
Package Tape & Reel
Product Status Active
Type Zener
Bidirectional Channels 1
Voltage - Reverse Standoff (Typ) 5V (Max)
Voltage - Breakdown (Min) 5.6V
Current - Peak Pulse (10/1000µs) 1A (8/20µs)
Power - Peak Pulse 60W
Power Line Protection Yes
Applications General Purpose
Capacitance @ Frequency 15pF @ 1MHz
Temperature Range - Operating -55°C ~ 125°C (TJ)
Mounting Type Surface Mount
Package / Case DFN1006
Supplier Device Package DFN1006
MSL Level 3 (168 Hours)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.10.0080
Win Source Part Number 1362355-ESD0801PB
Ultra Librarian 3D Model Ultra Librarian ESD0801PB CAD Model

Description

The 1362355-ESD0801PB is a Zener diode TVS (Transient Voltage Suppressor) designed for circuit protection against transient voltage events.

  • Voltage - Reverse Standoff (Typ): 5V
  • Voltage - Breakdown (Min): 5.6V
  • Current - Peak Pulse (10/1000µs): 1A (10/1000µs)
  • Power - Peak Pulse: 60W
  • Application: General Purpose
  • Package / Case: DFN1006
  • Mounting Type: Surface Mount
  • Series: DFN1006
  • Manufacturer: MDD
  • Active Product: Yes
  • REACH: Unaffected
  • Channel Type: Bidirectional
  • Capacitance @ Frequency: 15pF @ 1MHz
  • RoHS: Yes
