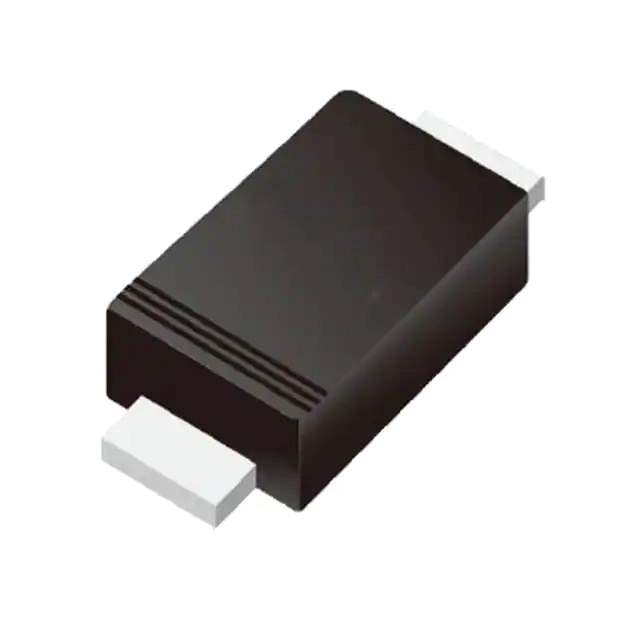

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Discrete Semiconductor Products - Diodes - Rectifiers - Single Diodes
Mfr MDD
Series SOD-123FL
Package Tape & Reel
Product Status Active
Technology Schottky
Voltage - DC Reverse (Vr) (Max) 40 V
Current - Average Rectified (Io) 3A
Voltage - Forward (Vf) (Max) @ If 550 mV @ 3 A
Speed Fast Recovery =< 500ns, > 200mA (Io)
Current - Reverse Leakage @ Vr 500 µA @ 40 V
Capacitance @ Vr, F 250pF @ 4V, 1MHz
Mounting Type Surface Mount
Package / Case SOD-123F
Supplier Device Package SOD-123FL
Operating Temperature - Junction -55°C ~ 125°C
Standard Package 6,000 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.39.0001
Win Source Part Number 587188-DSK34
Ultra Librarian 3D Model Ultra Librarian DSK34 CAD Model

Description

The MDD 587188-DSK34 Diode Rectifier is a high-quality diode designed for various applications.

  • Series: It is part of the SOD-123FL series, known for its fast recovery speed and high current rating.
  • Package: This diode is packaged in tape and reel, with a standard package of 6,000 pieces, ensuring convenience and ease of use.
  • Voltage Rating: With a voltage rating of 40V and an average rectified current of 3A, this diode is capable of handling a wide range of electrical currents.
  • Voltage Forward Rating: The voltage forward rating is 550mV @ 3A, ensuring efficient power transmission.
  • Reverse Leakage Current: It has a reverse leakage current of 500μA @ 40V, providing effective power line protection.
  • Capacitance: With a capacitance of 250pF @ 4V and 1MHz, this diode is suitable for high-frequency applications.
  • Operating Temperature Range: The MDD 587188-DSK34 Diode Rectifier operates in a temperature range of -55°C to 125°C, making it suitable for various environments.
  • Mounting Type: It is surface mountable, with a package/case of SOD-123F.
