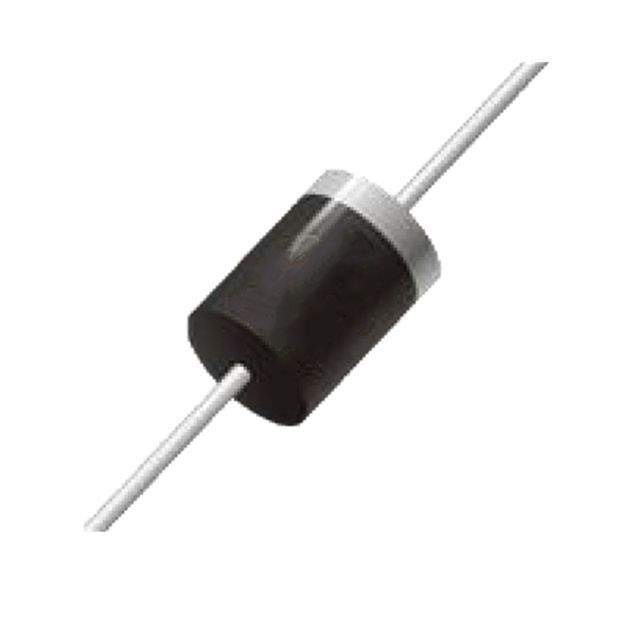

6A10-T/B Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Discrete Semiconductor Products>Diodes - Rectifiers - Single
Mfr MDD
Series R6
Package Tape & Box (TB)
Diode Type Standard
Voltage - DC Reverse (Vr) (Max) 1000 V
Current - Average Rectified (Io) 6A
Voltage - Forward (Vf) (Max) @ If 950 mV @ 6 A
Speed Standard Recovery >500ns, > 200mA (Io)
Current - Reverse Leakage @ Vr 10 µA @ 1000 V
Capacitance @ Vr, F 150pF @ 4V, 1MHz
Mounting Type Through Hole
Package / Case R-6, Axial
Supplier Device Package R-6
Operating Temperature - Junction -55°C ~ 150°C
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.39.0001
Other Names 3372-6A10-T/BTB
Standard Package 5,000
Win Source Part Number 1147990-6A10-T/B
Ultra Librarian 3D Model Ultra Librarian 6A10-T/B CAD Model

Description

The R6 series diode from MDD is a high-quality electronic component that is widely used in various electronic devices.

  • Speed: Standard Recovery (over 500ns)
  • Current Capacity: over 200mA
  • Voltage Rating: 1000V
  • Forward Voltage: 950mV @ 6A
  • Reverse Leakage Current: 10 microamps @ 1000V
  • Capacitance: 150pF @ 4V and 1MHz
